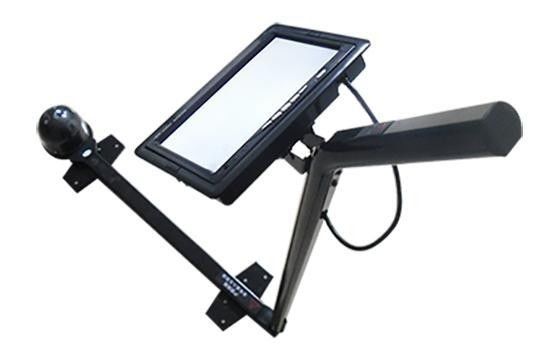

Security Systems XLD-CDJC06 Portable Under Vehicle Inspection System

Detailed Product Description


Grooss weight: 4.5Kg

Volume: 1023×149×156mm

Battery capacity: 2200mAH

Out voltage: 912.6v

Max working time: about7H

Working temperature: 060℃

Camera rotation angle: 360 degree

Screen: colorful 4 TFT LCD

  • Features
  • Description


XLD-CDJC06 Portable Under Vehicle Inspection System is the latest product which pushed out by SHENZHEN XINLIDAHONG TECHNOLOGY CO. Ltd in 2008. Mainly used in inspecting the overall structure of the car bottom, to ensure if the car bottom are illegal changes or hiding suspicious objects or personnel. It also can be used in the bottom of table, chair, bed, document cabinet and so on. And the place of high platform, pipeline, pipe shaft, the interior of pipe, the interior of camera obscura, in which human body can not reach.

Compared with the similar product in the market, this system has the following prominent advantages:

1, Using high capacity lithium battery power supply, with long service life and battery life is longer than lead-acid batteries, without charging memory and small volume. Our company may accord to the customer s requirement to make greater capacity & double battery version of the car bottom detector.

2, Adopted 3.5 or 4 inch high resolution ratio LCD displayer. Power consumption less than 10W, in the case of not affect the observation results and prolong the system working hours,

3, Adopted the latest dome wide angle camera, have wide vision, vertical about 90-degree, horizonal 360-degree without any dead angle.

4, Based on the excellent design concept, the system adopts two folding structure, can push into 1600mm depth cave to detecting, and it is different from the steel tube frame on the market, the airframe of this product adopt 1.0 mm steel plates forming process, beautiful and lightweight. The operation is labor-saving and simple.

5, With low power alarm functions, intelligence display remaining power and easy inquiry.

6. It has video and memory function. Max amount of membory is up to 80G.


1. Firstly,please open the lock device, just open the the right locking tap.

2. Adjust the screen to the suitable angle for you.

3. Press the power switch,you will see the video in the screen.

4. Pust it to working aren, for example,under vehicle, cave and so on, you can adjust the brake and move it and so on to detect designated area.

5.If need detect more deep aren,the operator can squat and adjust it to max angle (camera and handle is about in a straight line)


When hearing buzz, it means the power consumption is low,you need charge it in time. You can check charging time according to the battery indicator.


After you finishing detection,please turn off power swith and close it. It will be automadically locked, you just need put it in the bag. It s very easly protable.

4Precautions and
