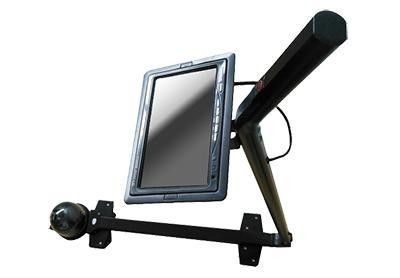

Security Systems XLD-CDJC10 (storage) visual under vehcile inspection system

Detailed Product Description


Grooss weight: 4.5Kg

Volume: 1023×149×156mm

Battery capacity: 2200mAH

Out voltage: 912.6v

Max working time: about7H

Working temperature: 060℃

Screen: colorful 4 TFT LCD

  • Features
  • Description

Compared with the similar product in the market, this system has the following prominent advantages:

1. Adopting high capacity lithium battery power supply, with long service life and battery life is longer than lead-acid batteries, without charging memory and small volume. Our company may accord to the customer s requirement to make greater capacity & double battery version of the car bottom detector.

2. Adopting 3.5 or 4 inch high resolution ratio LCD displayer to prolong the system working hours in case of power consumption less than 10W, without affecting the observation results.

3. Adopting the latest dome wide angle camera, have wide vision.

4. Based on excellent design concept, adopting folding structure, the system can reach 1600mm deep caves to detect. It is different from the steel tube frame on the market, this product adopt 1.0 mm press formingsteel plates, beautiful and lightweight. The operation is labor-saving and simple.

5. With low power alarm functions, intelligence display remaining power and easy inquiry.

6. The latest roundspherical camera is of vertical about 90-degree, horizonal 360-degree without any dead angle.

7. It has video and memory function. Max amount of membory is up to 80G.

Low pressure warnning: when power consumption is less than10V, it will buzz. You need charge the battery in time.

Camera type: Micro wide ange camera with infrared night-vision fuchtion

Camera rotation angle: 360 degree

XLD-CDJC10 (storage) visual under vehcile inspection system is the latest product which pushed out by SHENZHEN XINLIDAHONG TECHNOLOGY CO. Ltd in 2008. Mainly used in inspecting the overall structure of the car bottom, to ensure if the car bottom are illegal changes or hiding suspicious objects or personnel. It also can be used in the bottom of table, chair, bed, document cabinet and so on. And the place of high platform, pipeline, pipe shaft, the interior of pipe, the interior of camera obscura, in which human body can not reach.

1. Detection:

1) Firstly,please open the lock device, just open the the right locking tap.

2) Adjust the screen to the suitable angle for you.

3) Press the power switch,you will see the video in the screen.

4) Pust it to working aren, for example,under vehicle, cave and so on, you can adjust the brake and move it and so on to detect designated area.

5) If need detect more deep aren,the operator can squat and adjust it to max angle( camera and handle is about in a straight line)

2. Charge:

When hearing buzzs, it means the power consumption is low, you need charge it in time. You can check charging time according to the battery indicator.

3. Transport:

After you finish detection, please turn off the power swith and close it. It will be automadically locked, and you just need put it in the bag. It s very easly and protable.

4. Precautions and Maintenance:

It can not work in the rain, or in the ground with lots of water, or it will cause system
