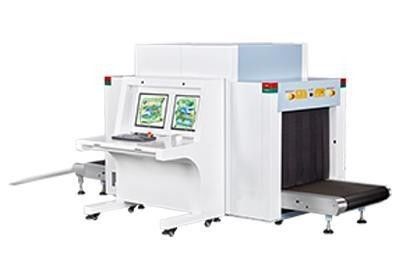

Product parameters:
Tunnel size:800(L)*650(W)mm
Conveyor Speed(m/s):0.22
Conveyor Max Load(kgs):200
Conveyor height(mm):305
Unit weight:800kgs
Unit size:4278(L)*1481(W)*1191(H) mm
Generator:2* 160KV, oil cooling, one from bottom to top, one from left to right
Penetration:Typical 40mm steel, guarantee 38mm steel
Wire Resolution:Typical AWG40, guarantee AWG38
X-Ray dosage /inspection:Typical 3.2Gy/h, guarantee 4.2Gy/h
Boundary Leakage:Typical 1.5 Gy/h, guarantee 2.0 Gy/h
Power consumption:Max.1.5 KVA
Noise:<60dB
Film Safety:Guarantee ASA/ISO1600 Film
Computer:CPUG1610 2.6G, hard drive 500G, Storage 2G
Display monitor:Dell or Acer, 17" LED screen, resolution 1280*1024
Operation System:Windows XP
Operation Table:Screen console
Image Enhancement:1-64times enlargement continuity, Color/BW, negative,high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color,etc.
Image Archive:Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.
Image Recall:All preceding images re-callable,retrieval.
Other Functions:Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications:Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).
Operation temperature/Humidity:0C45C / 5%-95%(non-condensing)
Storage temperature/Humidity:-40C70C / 5%-95%(non-condensing)
Operation Power:220VAC(±10%) 50±3Hz
