XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores

I'm Online Chat Now

XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores

XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores
XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores

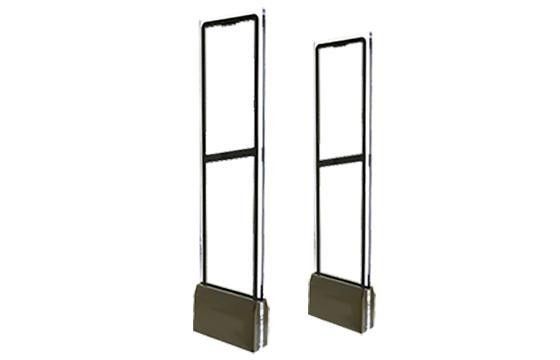

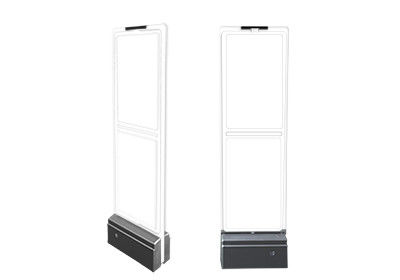

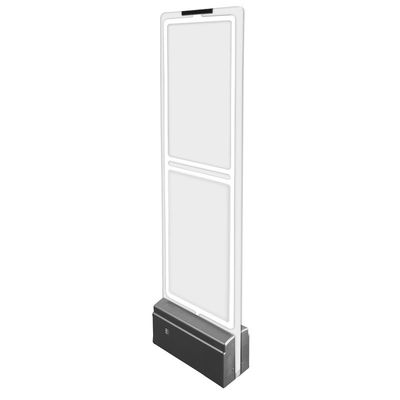

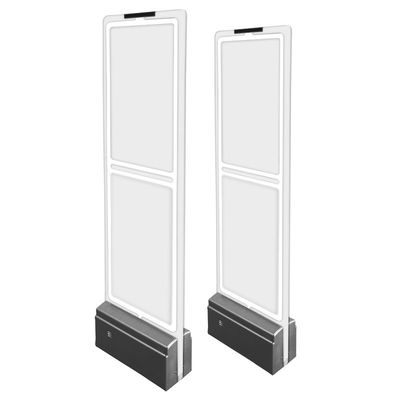

Large Image :  XLD-AM03 acrylic MONO AM EAS anti-theft alarm sytem for supermarkets and retail stores

Product Details:
Place of Origin: CHINA
Brand Name: SUNLEADER
Certification: CE
Model Number: XLD-AM03
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: normal export carton
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500pcs/month
Detailed Product Description

Quick Detail:

1. With alarm counting function

2. Detecting distance: 1m*2 soft tag, 1.4m*2(hard tag)

3. Material: import acrylic

4. Strong anti-jamming

5. DSP Board

6. Frequency: 58KHZ

7. MONO antenna, without a host (controller)





Specifications:

Product Size 1500*380*115 mm
Material Imported Acrylic
Frequency 58KHZ
Detecting range 1m * 2 for soft tag, hard tag can reach up to 1.5*2 (On either of Detector)
Thickness 25 mm
Electronic board DSP Board
Detection area more than 95 percent
Power 15 W
Electrical source AC(50~60hz)220V~245V
Installation Type base type, line slot, embedded tube





Description:

1. Technical Advantages: Imported Acrylic Material body, elegant appearance, strong aging esistance, durable. Among the detection antennas of the same kind, it has increased measurement range, strong anti-interference performance, applicable to various shopping places.

2. Automatic signal conditioning: the most advanced automated environmental monitoring program, auto-matching of system parameters, truly free from system adjustment.

3. Manual signal conditioning: capable of configuring the system manually in the complex field environment, strong adaptability.

4. Wireless synchronized signal technology: capable of selecting different synchronization values by adjusting the frequency synthesizer, the interference on the frequency is staggered, and the channel is more broad.

5. High-precision digital filtering technology: fourth-order digital filter technology, 6. Multi-level filtering processing of signals, effectively improving the range and efficiency of tag detection.

7. Intelligent display technology: Various parameters can be displayed and both LED multifunction process.

8. Man-machine interactive design: Infrared Remote Control, simple operation, convenient and fast.

9. 100MHZ High speed DSP digital signal processing, super data processing performance to ensure system detection sensitivity and stability.





Main Advantages:

1. Most advanced signal processing (DSP) technology;

2. Self-adapting multichannel Frequency Hopping, 95% detection rates;

3. Strong anti-jamming capability;

4. Multiple anti-interference technologies;

5. Very professional and popular in Use in Fashionable Super store and Supermarket.





Application places:

Supermarket, super mall, retail store, shoes store, clothes store, harware store, sports shop, hat shop, glasses store, jewelry store, pharmacy, cosmetic store, etc.





General Information:

Place of Origin Shenzhen, China
Brand Name Sunleader
Model Number XLD-AM03
Certification ISO9001: 2008





Commerce clauses:

MOQ 1 piece
Price
Packaging Details 157*330*30cm, 1piece / set, 25kg / carton
Delivery Time 3-15 working days
Payment Terms By T/T, Western Union, cash
Supply Ability 3000pcs / month
Warranty time One year
