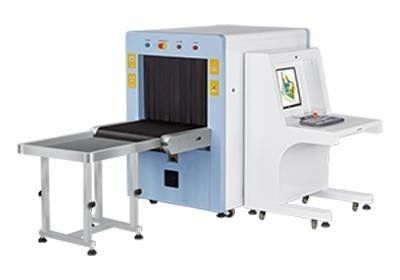

Security Systems XLD-6040 X-ray baggage machine

Detailed Product Description

2017-12-20

Product parameters:

Tunnel size:600(L)*400(W)mm

Conveyor Speed(m/s):0.2

Conveyor Max Load(kgs):170

Conveyor height(mm):695

Unit weight:475kgs

Unit size:2195(L)*902(W)*1362.5(H) mm

Penetration:Typical 32mm steel, guarantee 30mm steel

Wire Resolution:Typical AWG38, guarantee AWG36

X-Ray generator:140KV, oil cooling, from bottom to top

  • Features
  • Description

Image Enhancement:

1-64times enlargement continuity, Color/BW, negative,high/lowpenetration, organic /inorganic

Stripping, general enhancement, and pseudo color,etc.

Image Archive:

Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.

Other Functions:

Time/date display, counters, user management, system-on/X-ray-on timers, power on self test,

built-in diagnostic facilities, dual-direction scanning, system log, system standby and

stimulant training, ADS etc.

Product highlights

* Multilingual operation* Automatic built in test and self diagnosis

* Secure access Key* Continuous working 10000 hours above

* Threat alert and material classification

* International standard configurationJapan Hammatsu detection and UK Sens-tech board

* NetworkReady* Energy saving design

* One key turn off* Drugs and explosives inspection

* Indication of the date and time
