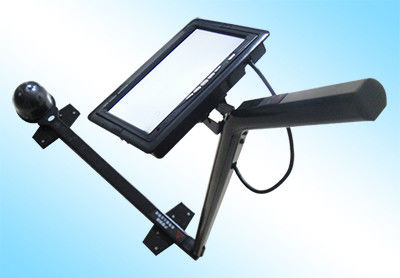

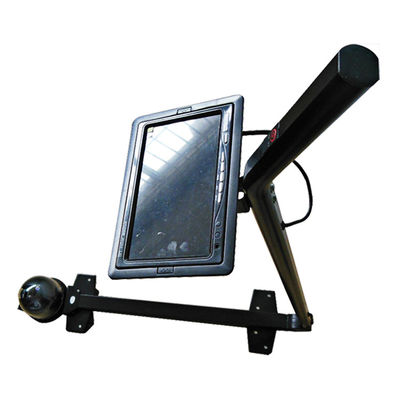

XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function

I'm Online Chat Now

XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function

XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function
XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function

Large Image :  XLD-CDJC06  Auto Under Vehicle Inspection System With LCD Display Video And Memory Function

Product Details:
Place of Origin: CHINA
Brand Name: SUNLEADER
Certification: CE
Model Number: XLD-CDJC06
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: normal export carton
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500pcs/month
Detailed Product Description

Quick Detail:



1. Model: XLD-CDJC06

2. Name: Auto Under Vehicle Inspection System With LCD Display Video And Memory Function

3. Size: 1023 × 149 × 156mm

4. Brand Name: Sunleader

5. Display: 5 inch LCD display

6. Memory function. Max amount of memory is up to 80G.



General Information:



Place of Origin Shenzhen, China
Brand Name Sunleader
Certification ISO9001:2008
Model Number XLD-CDJC06





Commerce clauses:



Minimum Order Quantity 1 SET
Packaging Details 1 PC / CTN
Delivery Time 3 to 4 working days after order confirm
Payment Terms T/T, LC or Western Union
Supply Ability 1000 pcs / Week





Product Details:



Place of Origin: Shenzhen, China
Brand Name: Sunleader
Certification: ISO9001: 2008, SGS
Model Number: XLD-CDJC01





Specifications:



Name Under Vehicle Safety Inspection system
Item XLD-CDJC06
Size 1023 × 149 × 156mm
Weight 4.5kg
Battery 2200mAH
Output voltage 9 ~ 12.6v
Function

Mainly used in inspecting airport security, car parking system,

office building, bank, station and hotel, etc.

Power alarm battery voltage Falls below 10V, continuous buzzer
Working hours 7 Hours
Rotation angle of the camera 180 degree
Type mini wide angle camera with infrared night vision
Memory function Max amount of memory is up to 80G.
Monitor color 5 inch TFT LCD





Description:



XLD-CDJC06 Portable Vehicle Bottom Detector System is the latest product pushed out by SHENZHEN XINLIDAHONG TECHNOLOGY CO.LTD. Mainly used in inspecting the overall structure of the car bottom, to ensure if the car bottom are illegal changes or hiding suspicious objects or personnel. It also can be used in the bottom of table ,chair, bed, document cabinet and so on. And the place of high platform, pipeline, pipe shaft, the interior of pipe, the interior of camera obscuration, in which human body can not reach.





Applications:



Airport security, car parking system, office building, bank, station and hotel, etc.





Competitive Advantage:



1. Using high capacity lithium battery power supply, , with long service life and battery life is longer than lead-acid batteries, without charging memory and small volume. Our company may according to the customer's requirement to make greater capacity & double battery version of the car bottom detector.

2. Adopted 5 inch high resolution ratio LCD displayer. Power consumption less than 10W, in the case of not affect the observation results and prolong the system working hours,

3. Adopted the wide angle camera , have wide vision.

4. Based on the excellent design concept, the system adopts two folding structure, the largest open Angle is 175 degrees, can push into 1600mm depth cave to detecting, and it is different from the steel tube frame on the market, the airframe of this product adopt 1.0 mm steel plates forming process, beautiful and lightweight. The operation is labor-saving and simple.

5. With low power alarm functions, intelligence display remaining power and easy inquiry.

6. It has video and memory function. Max amount of membory is up to 80G.
