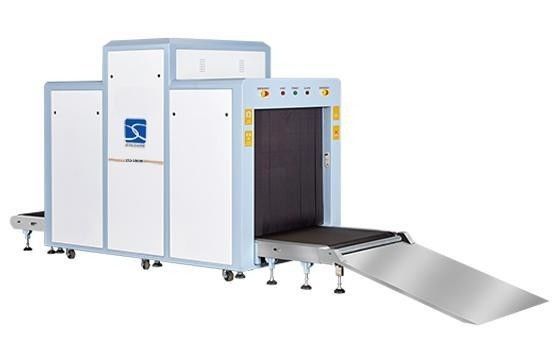

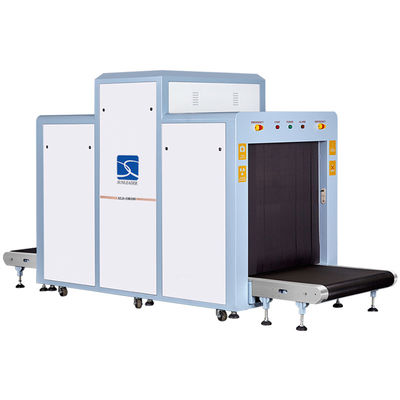

Security Systems XLD-100100 X-ray baggage machine

Security Systems XLD-100100 X-ray baggage machine
Security Systems XLD-100100 X-ray baggage machine Security Systems XLD-100100 X-ray baggage machine

Large Image :  Security Systems XLD-100100 X-ray baggage machine

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: XLD-100100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export wooden case.
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500pcs/month
Detailed Product Description

Quick Detail:

Alarm by sounds&light: Alarm by sound and light when confirm to condition

Network interface: It can connect to local area network and support multi-terminal check baggage at same time.

Safty ray: Transmit ray under automatic control, avoiding any baggage missing.

Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.

Simple operation by mouse: Without keyboard and work table, control by mouse, save space.

Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.

Eagle-eye: It can be expediently observing enlarged area.

Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.




Tunnel size: 1000(W)x1000(H) mm
Conveyor speed: 0.2m/s
Conveyor max load: 200kg
Single inspection dosage: <1.5upGy
Wire resolution: 0.1mm metal line
Steel penetration: 30mm amor plate
Film safety: for ISO 1600
Maxmum leakage: radiation: <0.3ugy/H





Image performance system

X-ray sensor: 1 Type photo-diode array detector, 12bit

Monitor: High resolution 17inch color led display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly

Low penetrate strength display: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real time store any image and process it in operation status


Multi-energy function

Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green

High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic

Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect

Audible&visible alarm: give sound and visible signal when confirming to condition



Main Advantages:


Storage temperature: -20°C to 60°C

Operating temperature:0 °C to 45 °C

Relative humidity: 20 to 95% non-condensing

System power:220VAC (±10%) 50±3HZ

Power wastage: 1.0KW(max)

Noise: <60DB



Application places:


Factory, airport security, stadium, entertainment, etc



General Information:

Place of Origin Shenzhen, China
Brand Name Sunleader
Model Number XLD-100100
Certification ISO9001: 2008



Commerce clauses:

MOQ: 1 pc
Package Weight:
Payment Terms: By T/T, Western Union, cash
Supply Ability: 3000pcs / month
Warranty time: One year
