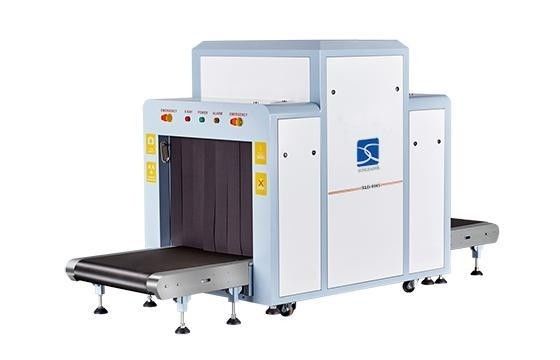

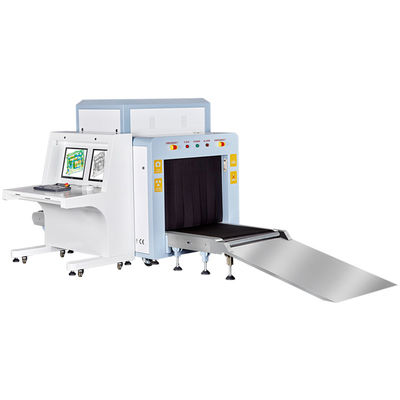

Quick Detail:
1,Resolution: diameter of Ø 0.1mm metal wire
2,Cooling: seal oil cooling
3,Constituencies and to enlarge multiple: 1-9 constituencies can choose,and amplification,2,4,8 and achieve full-screen continuous observation
Specifications:
| Tunnel Size: | 81×65cm |
| Conveyor spped: | 1.6m/s |
| Maxium belt load: | 50KG |
| A single dose of inspection: | <0.1mR |
| Resolution: | Diameter of Ø0.1mm metal wire |
| Penetration: | 30mm steel plate |
| Tube Voltage: | 140KV |
| Cooling/work cycle: | Seal oil cooling/100% |
| Dispaly: | 19-inches LCD dispaly stardard MPRII,and TC003 standards |
| Image Processing | Cllor/black and white image anti-as shown,edge enhancement,image enhancement,high penetration,low penetration,image back,alarm function,image preservation,image retrieval |
| Gray-scale image: | 4096 |
| Image resolution: | 1024×768 |
| Image Proccessing: | 24 bit real time |
| Operating Temp /Humidity: | 0℃-45℃ / 20%-95% |
| Storage Temp /Humidity: | -20℃-60℃ / 20%-95% |
| Operating Voltage: | 220V AC(±10%),50Hz±3Hz |
| Power Loss: | 0.5KVA |
Description:
Single inspection dosage < 1.5µgy
Wire resolution: 0.1mm metal line
Film safety: for ISO 1600
Maximum leakage radiation <0.3µgy/h X-ray sensor:l type photo-diode array detector, 12bit
Monitor: high resolution 19inch color lcd display
Color quality:24 bit real colors

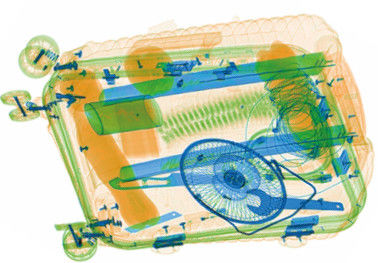

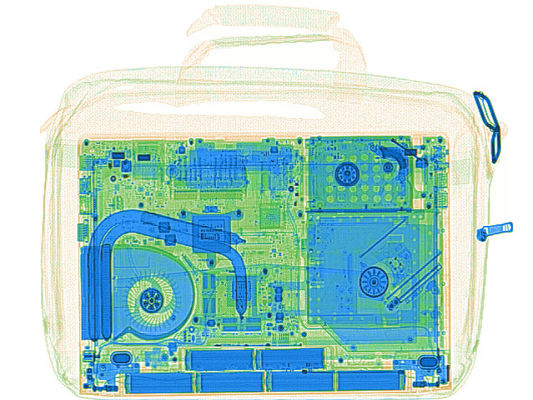

Edge enhancement:object contour edge is more distinct
Super image enhancement:image detail is more distinct
Image recurrence:display previous twenty images and process any one of them
Image restoration:restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Applications:
Hotel,railway/bus/subway station,stadium,exhibition hall,etc
3.
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sunleader |
| Certification: | ISO9001: 2008 |
| Model Number: | XLD-8065 |
4.
| Minimum Order Quantity: | 1set | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Price: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Details: | Standard export wooden case. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Delivery Time: | 3-15 working days | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Payment Terms: | By T/T, Western Union, Cash. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supply Ability: | Depend on the quantity of order . | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty Time: | 1 year.Quick Detail:
|
