Payment & Shipping Terms:
1, Resolution: diameter of Ø 0.1mm metal wire
2, Cooling: seal oil cooling
3, Constituencies and to enlarge multiple: 1-9 constituencies can choose,and amplification,2,4,8 and achieve full-screen continuous observation
|Tunnel size:||650(W)x500(H) mm|
|Conveyor max load:||100kg|
|Single inspection dosage:||<1.5upGy|
|Wire resolution:||0.1mm metal line|
|Steel penetration:||30mm amor plate|
|Film safety:||for ISO 1600|
|Maxmum leakage radiation:||<0.3ugy/H|
|Storage temperature:||-20°C to 60°C|
|Operating temperature:||0 °C to 45 °C|
|Relative humidity:||20 to 95% non-condensing|
|System power:||220VAC (±10%) 50±3HZ|
Image performance system
X-ray sensor: 1 Type photo-diode array detector, 12bit
Monitor: High resolution 17inch color led display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly
Low penetrate strength display: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status

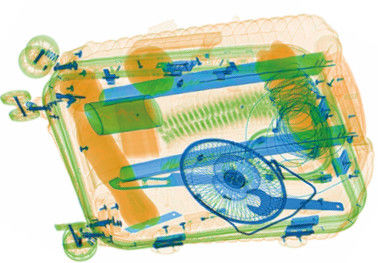

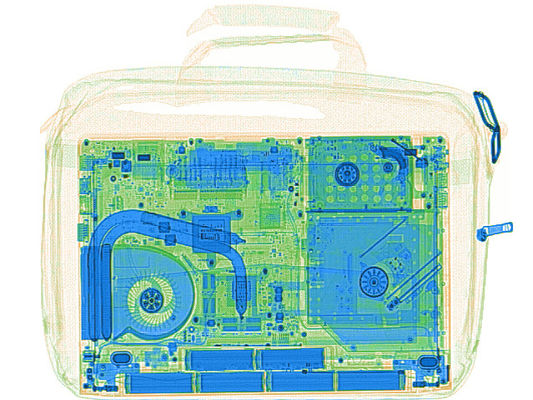

Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green
High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic
Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect
Audible&visible alarm: give sound and visible signal when confirming to condition
Alarm by sounds&light: Alarm by sound and light when confirm to condition
Network interface: It can connect to local area network and support multi-terminal check baggage at same time.
Safty ray: Transmit ray under automatic control, avoiding any baggage missing.
Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.
Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.
Eagle-eye: It can be expediently observing enlarged area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.
Factory, airport security, stadium, entertainment, etc
|Place of Origin||Shenzhen, China|
|Payment Terms:||By T/T, Western Union, cash|
|Supply Ability:||3000pcs / month|
|Warranty time:||One year|
Contact Person: Mr. zhou
