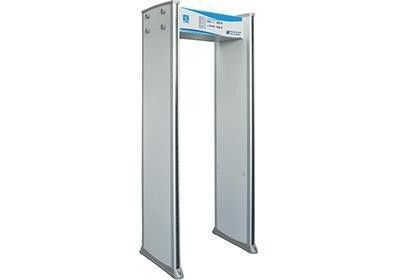

Security Systems XLD-A2 6 Zones

Security Systems XLD-A2 6 Zones
Security Systems XLD-A2 6 Zones Security Systems XLD-A2 6 Zones Security Systems XLD-A2 6 Zones Security Systems XLD-A2 6 Zones

Large Image :  Security Systems XLD-A2 6 Zones

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: XLD-A2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: normal export carton
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500pcs/month
Detailed Product Description


Power:AC220V 50Hz

Consumption: less than 30VA

Transmitting frequency:6.9~11 KHz,8 frequency for your choice


Working environment:-20℃-+45

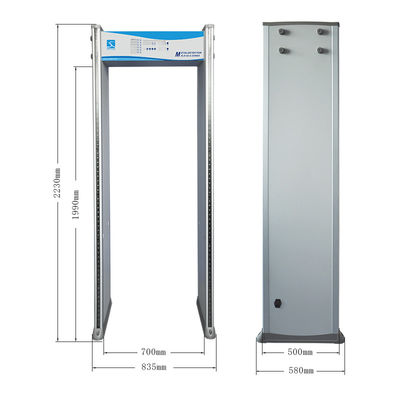

Tunnel size:2010mm(l)*700mm(w)*510mm(d)

Overall dimesion:2200mm(l)*820mm(w)*510mm(d)

Standards:GB-15210-2003<Walk through metal detector>

  • Features
  • Description

Product process:

Imported synthetic material, after the special craft a suppression and become, moistureproof, fire prevention.

Infrared technique:

Benefit from the infrared sensor, the ability of mechanical interference was improved.

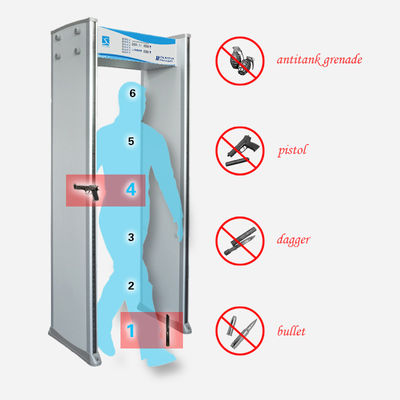

Six detecting zones:

All of the detecting area was divided into six equal pieces which interlaps, so different zones can

alarm and light at the same time.

Intuitive dispaly:

The LED alarming light for each zone was built in both sides of the bilateral pillar.

Alarming time: It can be set 18 Second,you could press corresponding number.

Alarming volume: It can be set 18 degree,you could press corresponding number.

Alarming tone: There`s 8 tomes to choose,you could press corresponding number.

Regional sensitivity is adjustable:

The sensitivity can be adjust between 0-99 , according to user s actual demand to rule out the body carries jewelry,

belt buckle, metal zipper, etc. Maximum sensitivity can detect the paper clip size of metal objects.

The total sensitivity adjustment:

There is 4096 sensitivity level, of which 4096 is the most sensitive, 0 level for the minimum sensitivity.


Intelligent statistics the number of personnel through and the number of alarm.

Easy to operate:

Operation panel for thin film panel, high brightness display panel can be directly display

alarm area, precise instructions was probing where things are, and have sound and light alarm at the same time.


It can be use for more than one grid while the distance is only 35 cm

Password protection:

The XLD-A2 can be set password for authorization management, which allows only authorized personnel to operate it.

This will effectively prevent others to change parameters.

Harmless to human:

XLD-A2 is safe to apparatus of cardiac pacing in the human body, pregnant women, magnetic

floppy disks, tapes, video tapes, etc.

Easy to instal:

XLD serie metal detector do
