XLD-II ,6 zones ,255 level high sensitvity walk through metal detector

I'm Online Chat Now

XLD-II ,6 zones ,255 level high sensitvity walk through metal detector

XLD-II ,6 zones ,255 level high sensitvity walk through metal detector
XLD-II ,6 zones ,255 level high sensitvity walk through metal detector XLD-II ,6 zones ,255 level high sensitvity walk through metal detector XLD-II ,6 zones ,255 level high sensitvity walk through metal detector XLD-II ,6 zones ,255 level high sensitvity walk through metal detector

Large Image :  XLD-II ,6 zones ,255 level high sensitvity walk through metal detector

Product Details:
Place of Origin: CHINA
Brand Name: SUNLEADER
Certification: CE
Model Number: XLD-II
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: normal export carton
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 500pcs/month
Detailed Product Description

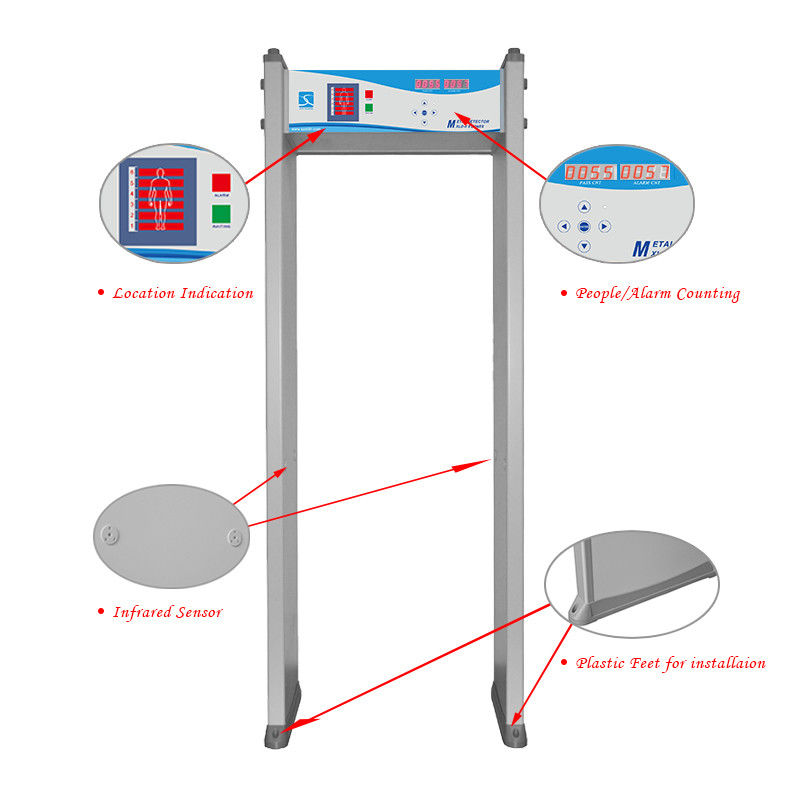

Quick Detail:

1, 6 detecting zones

2, Aluminium Alloy frame

3, LED lamp indicates the alarming position

4, Couting the total people crossed and alarming times



Specifications:

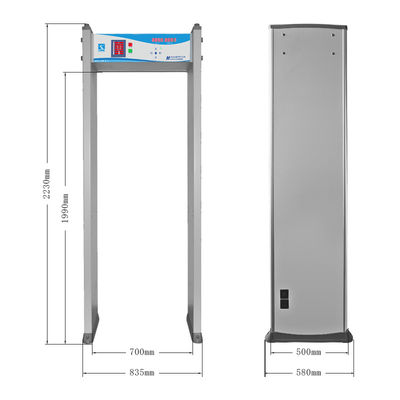

Outer frame : 2200mm(H)X800mm(W)X500mm(D)
Channel size: 2010mm (H) X700mm (W) X500mm (D)
Weight : About 80kg
Work environment : -20- +45℃
Complied standards GB15210-94
Power supply: 220V,AC
Power: <30W
Material of panel: Import synthetic material,moisture and fire proof
Count detecting Infrared sensor,mechanical anti-interference
Sensitivity: 255 level ,adjustable









Description:



Product Process: Using imported synthetic material, once suppressed by the special arts and crafts made of moisture, fire.
Infrared technology: through an infrared sensor, mechanical interference ability.
Adjustable area sensibility: Between the self-regulation can be 0-255 sensitivity, according to the user demands the removal of the actual sensitivity and carried by the body jewelry, belt buckle, metal zipper and so on. The maximum sensitivity can detect metal objects the size of the clip.
Statistical functions: Intelligent and Statistics by the number of personnel and alarm times.
Easy to operate: Operation panel for the thin-film panel, high-brightness display panel can directly display alarm area, precise location of the instructions have been exploratory items, and have sound and light alarm simultaneously.
Network function: Can be used more than one grid, distance is only 35CM
Password protection: Set authorization, password manager, allowing only authorized personnel to operate, which can effectively prevent others to modify the parameters.
Harmless to human body: On the human body, the heart pacemakers, pregnant women, magnetic floppy disks, tapes, video tapes and other sound.
Easy installation: XLD Series metal detector gate is a combination of design, easy installation and removal, operating instructions easier to understand.



Applications:



Hotel,railway/bus/subway station,stadium,exhibition hall,etc









3.产品通用信息

Model Number: XLD-II
Place of Origin: Shenzhen ,China
Brand Name: Sunleader
Certification: ISO9001: 2008



4.产品商务条款

Minimum Order Quantity: 10
Price:
Packaging Details: Door panel Carton size:236*71*28CM Base Unit Carton size: 86*52*304CM
Delivery Time: 3-15 working days
Payment Terms: By T/T, Western Union, Cash.
Supply Ability: Depend on the quantity of order .
Warranty Time: 1 year
