| Frequency: | 13.56mhz | Material: | Acrylic |
|---|---|---|---|
| Detection Distance: | 90cm-130cm | Usage: | Library |
| Port: | Shenzhen |

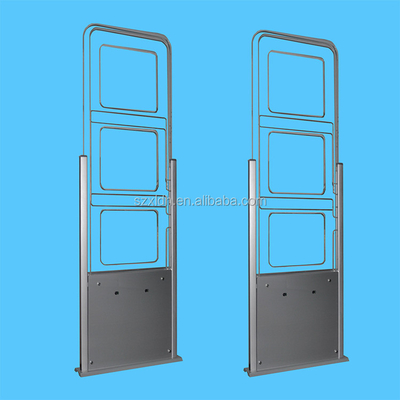

XLD-RFID02 is a high performance RFID Library Anti-theft Gate which can read tags in three-dimensional orientation complying with ISO/IEC 15693,ISO18000-3 protocol.
XLD-RFID02 RFID anti-theft gate supports AFI, EAS, AFI+EAS, UID detection model, with light and alarm double warning, supports offline application and muti gate antenna using, automatically people counting and displaying the number of check-in/ check-out . Mainly used in smart library, achieve etc fields. The gate width can reach up to 130cm.
Mainly Features:
·Three-dimensional orientation detecting, tags can be detected in all directions.
·gate width from 90 to 130cm(relative to tags quality and size).
·Support multiple -channel application
·EAS and AFI optional detection
·Support EAS+AFI mixed detection
·Support Tag UID detection
.People counter with the in/out people numbers
·Support relay output control
·Support firmware upgrade
.Support OEM service
Technical Parameters | Operating Frequency | 13.56MHz±7KHz | |
Protocol | ISO / IEC15693, ISO18000-3 | ||
Aisle Width | Maximum: 90cm(relative to the tags quality and size) | ||
Infrared Sensors | 2 pairs | ||
Communication Interface | standard RS232 / Ethernet, RJ45(optional) | ||
Output Impedance | 50Ω | ||
Tag overlapping area
| Max:25%( adjacent tags) | ||
Cascade NO. | Max: 99pcs | ||
Rated Power | <25W | ||
Operating Voltage | 220VAC 50/60Hz | ||
Environmental | Operating Temperature | -10℃~55℃ | |
Storage Temperature | - 20℃~70℃ | ||
Humidity Range | 20%~90% RH | ||
Physical Parameter | Dimensions | Antenna body size
| Pedestal size |
L*W*Thickness(mm): 1663*630*46mm | L*W(mm): 697*120 | ||
Weight/pc | 30Kg | ||
Color | Transparent | ||
Housing Material | Acrylic | ||
