Portable bottom of Vehicle Detector(XLD-CDJC01)

I'm Online Chat Now

Portable bottom of Vehicle Detector(XLD-CDJC01)

Portable bottom of Vehicle Detector(XLD-CDJC01)
Portable bottom of Vehicle Detector(XLD-CDJC01)

Large Image :  Portable bottom of Vehicle Detector(XLD-CDJC01)

Product Details:
Place of Origin: Guangdong, China
Brand Name: XLD
Model Number: XLD-CDJC01
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: $400.00 - $800.00/units
Packaging Details: 2PCS/CTN 22kG/CTN CTN SIZE:113*46*25cm
Supply Ability: 50000 Unit/Units per Month
Detailed Product Description
Rotation Angle Of Camera: 130 Degree Power Alarm: Battery Voltage Lower Than 10V, Buzzer Ringing
Weight: 4.5kg Monitor: 4 Inch Color TFTLCD
Port: Shenzhen

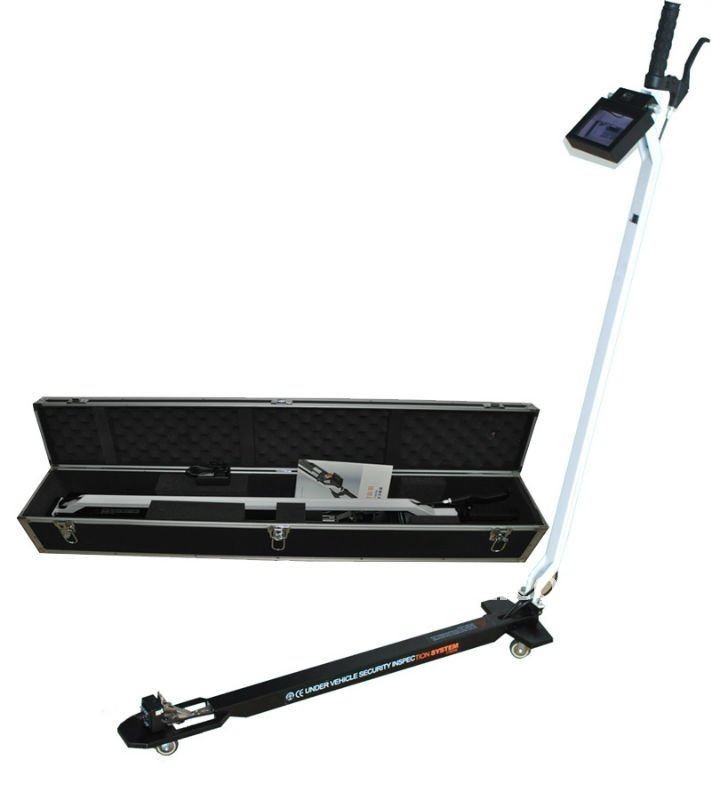

XLD-CDJC01 Portable bottom of Vehicle Detector


XLD-CDJC01 Portable Bottom of Vehicle Detector System is the latest product which pushed out by SHENZHEN XINLIDAHONG TECHNOLOGY CO.LTD in 2008. Mainly used in inspecting the overall structure of the car bottom, to ensure if the car bottom are illegal changes or hiding suspicious objects or personnel. It also can be used in the bottom of table, chair, bed, document cabinet and so on. And the place of high platform, pipeline, pipe shaft, the interior of pipe, the interior of camera obscura, in which human body can not reach.

 Compared with the similar product in the market, this system has the following prominent advantages:

1, Using high capacity lithium battery power supply, , with long service life and battery life is longer than lead-acid batteries, without charging memory and small volume. Our company may accord to the customer's requirement to make greater capacity & double battery version of the car bottom detector.

2, Adopted 3.5 or 4 inch high resolution ratio LCD displayer. Power consumption less than 10W, in the case of not affect the observation results and prolong the system working hours,

3, Adopted the wide angle camera, have wide vision.

4, Based on the excellent design concept, the system adopts two folding structure, the largest open Angle is 175 degrees, can push into 1600mm depth cave to detecting, and it is different from the steel tube frame on the market, the airframe of this product adopt 1.0 mm steel plates forming process, beautiful and lightweight. The operation is labor-saving and simple.

5, with low power alarm functions, intelligence display remaining power and easy inquiry.



Weight: 4.5kg

Volume: 1023×149×156mm

Battery capacity: 2200mAH

Output voltage: 9~12.6v

Power alarm: Battery voltage lower than 10V, buzzer ringing

Operating time: about 7 hours

Operating temperature:0~60 centigrade

Rotation angle of camera: 130 degree

Camera type: miniature wide-angle, with infrared night-vision ability

Monitor: 4 inch color TFTLCD
