Product Details:
Payment & Shipping Terms:
|
| Brand: | SUNLEADER | Certificate: | CE RoHS ISO9001 |
|---|---|---|---|
| Size: | 80(w)cm*65(h)cm | Coveyor Speed: | 0.22m/s |
| Tube: | 80~160kv(adjustable) | Penertration: | 43mm Thick Steel Plate |
| Conveyor Capacity: | 200kg | Dimension: | 2850mm(l)*1100mm(w)*1550mm(h) |
| Application: | Airports/stations/ports | Warranty: | 1 Year |
| Port: | SHENZHEN |

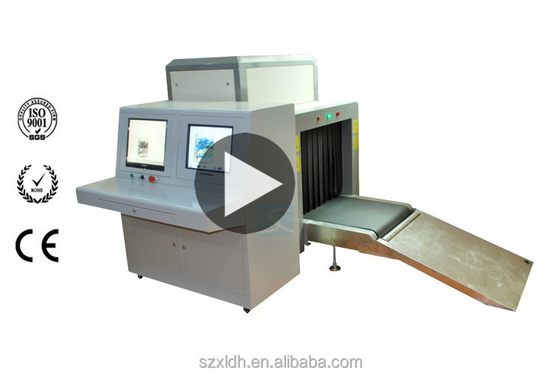

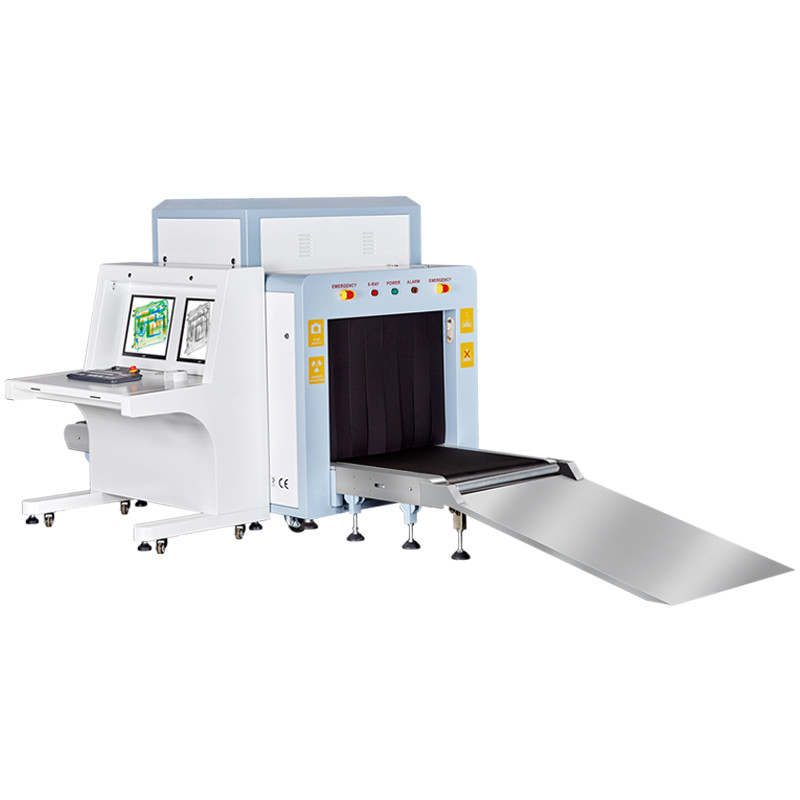

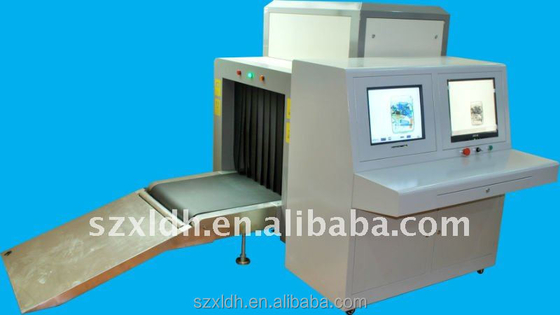

Airport security system, x-ray baggage scanner, x ray scanning machines
Model:XLD-8065
Tunnel size: 800(W)x650(H) mm
Conveyor speed:0.22m/s
Conveyor capacity: 200kg
Single inspection dosage: <1.5upGy
Wire resolution: 0.1mm metal line
Steel penetration: 43mm amor plate
Film safety: for ISO 1600
Maximum leakage radiation: <0.3ugy/H
A single dose of inspection: | <0.1mR |
Resolution: | Diameter of Ø0.1mm metal wire |
Penetration: | 11mm steel plate |
Tube Voltage: | 80~160KV(adjustable) |
Cooling/work cycle: | Seal oil cooling/100% |
Dispaly: | 19-inches LCD dispaly stardard MPRII,and TC003 standards |
Image Processing | Cllor/black and white image anti-as shown,edge enhancement,image enhancement,high penetration,low penetration,image back,alarm function,image preservation,image retrieval |
Gray-scale image: | 4096 |
Image resolution: | 1024×768 |
Image Proccessing: | 24 bit real time |
Operating Temp /Humidity: | 0℃-45℃ / 20%-95% |
Storage Temp /Humidity: | -20℃-60℃ / 20%-95% |
Operating Voltage: | 220V AC(±10%),50Hz±3Hz |
Power Loss: | 0.5KVA |
Factory, airport security, stadium, entertainment, etc
2000 sets/unit week
