Product Details:
Payment & Shipping Terms:
|
| Size: | 50.5(w)cm*30.5(h)cm | Coveyor Speed: | 0.2m/s |
|---|---|---|---|
| Tube: | 160kv | Penertration: | 30mm Thick Steel Plate |
| Conveyor Capacity: | 160kg | Host Noise: | 62db(A) |
| Application: | Airport | Certificate: | CE RoHS ISO9001 |
| Brand: | SUNLEADER | Warranty: | 1 Year |
| Port: | SHENZHEN |

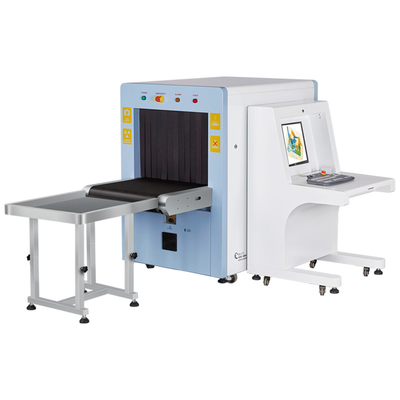

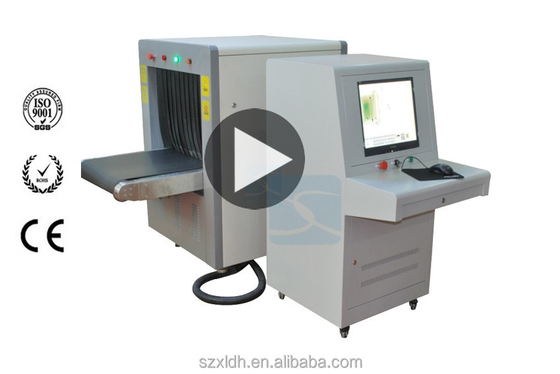

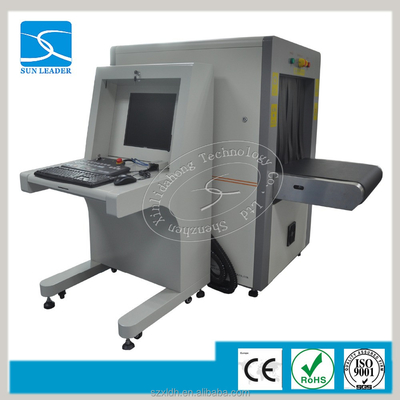

High quality 0.2m/s x-ray baggage scanner x-ray security machine

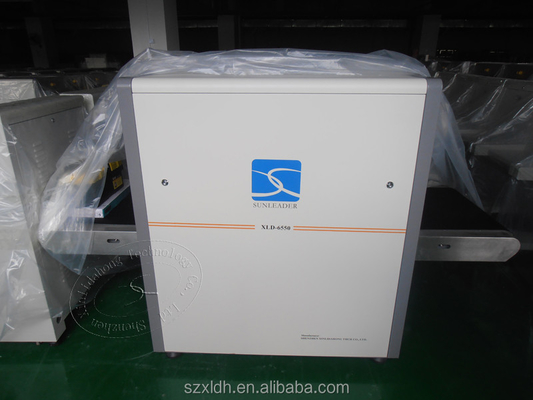

Model:XLD-6550
Features:
Tunnel size: 650(W)x500(H) mm
Conveyor speed:0.2m/s
Conveyor capacity: 160kg
Single inspection dosage: <1.5upGy
Wire resolution: 0.1mm metal line
Steel penetration: 30mm amor plate
Film safety: for ISO 1600
Maximum leakage radiation: <0.3ugy/H
Specifications:
A single dose of inspection: | <0.1mR |
Resolution: | Diameter of Ø0.1mm metal wire |
Penetration: | 30mm steel plate |
Tube Voltage: | 160KV |
Cooling/work cycle: | Seal oil cooling/100% |
Dispaly: | 19-inches LCD dispaly stardard MPRII,and TC003 standards |
Image Processing | Cllor/black and white image anti-as shown,edge enhancement,image enhancement,high penetration,low penetration,image back,alarm function,image preservation,image retrieval |
Gray-scale image: | 4096 |
Image resolution: | 1024×768 |
Image Proccessing: | 24 bit real time |
Operating Temp /Humidity: | 0℃-45℃ / 20%-95% |
Storage Temp /Humidity: | -20℃-60℃ / 20%-95% |
Operating Voltage: | 220V AC(±10%),50Hz±3Hz |
Power Loss: | 0.5KVA |
Application places:
Factory, airport security, stadium, entertainment, etc
Packaging:
Supply Capacity:
2000 sets/unit week
Certifications:
Why choose us?
FAQ:
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Shenzhen,China.we have independent department for purchasing, producing, testing, packing, storing .
2.What is the minimum MOQ?
1PC
3.When is the time of shipping?
Shipped 3 days after payment
4.What is the payment term ?
By T/T,L/C
5.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
6.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
and other related electronic products and machines
ShenzhenXinlidahong Technology Co.,Ltd
Add 6/F,15#,Futing Industry Zone,Guanlan,Shenzhen,China 518000
Tel;+86-075583763507
Fax:+86-07558376892 www.szxldh.com
Mob:+86-13410858355(Shirley Deng) skype:szxldh03
Email:sales03szxldh.com
