Product Details:
Payment & Shipping Terms:
|
| Model: | XLD-5030A | Coveyor Speed: | 0.2m/s |
|---|---|---|---|
| Brand: | SUNLEADER | Max Load: | 50KG |
| Penetration: | 5mm Steel Plate | Image Resolution: | 1024*8768 |
| Operating Voltage: | 110v/220v | Warranty: | 1 Year |
| Application: | Hotel, Railway/bus/subway Station, | Certificate: | CE ISO |
| Port: | SHENZHEN |

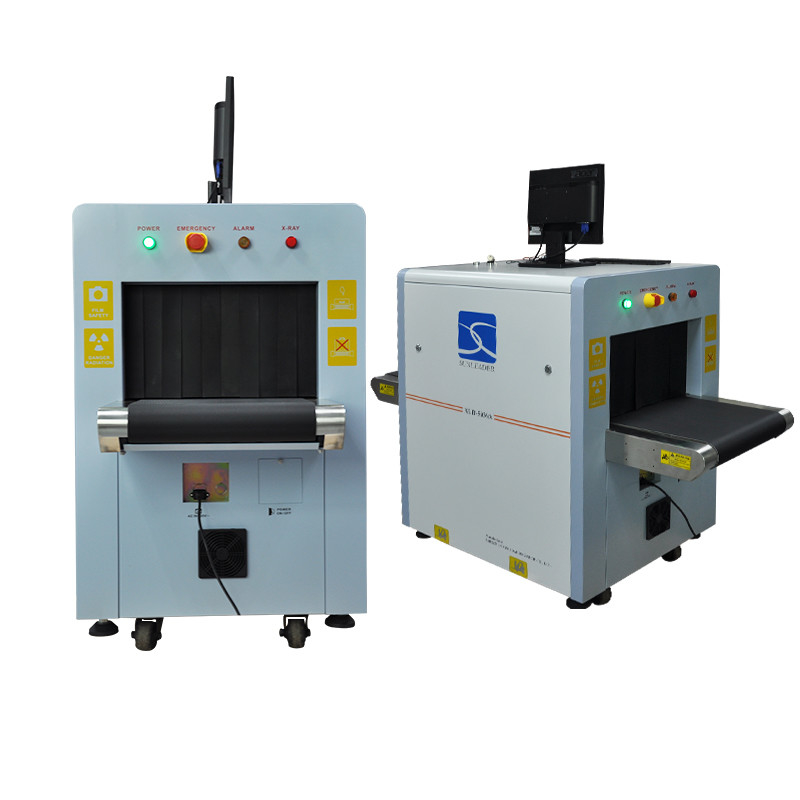

mini and fashionable 5030 x ray baggage scanner
Quick Detail:
1. Tunnel Size: 50.5×30.5cm
2. Resolution: diameter of Ø 0.1mm metal wire
3. Penetration: 5mm steel plate
4. Cooling: seal oil cooling
5. Image resolution: 1024×768
6. Constituencies and to enlarge multiple: 1-9 constituencies can choose,and amplification, 2,4,8 and achieve full-screen continuous observation
Specifications:
Tunnel Size: | 50.5×30.5cm |
Conveyor spped: | 1.6m/s |
Maxium belt load: | 50KG |
A single dose of inspection: | <0.1mR |
Resolution: | Diameter of Ø0.1mm metal wire |
Penetration: | 5mm steel plate |
Tube Voltage: | 70KV |
Cooling/work cycle: | Seal oil cooling/100% |
Dispaly: | 19-inches LCD dispaly stardard MPRII,and TC003 standards |
Image Processing | Cllor/black and white image anti-as shown,edge enhancement,image enhancement,high penetration,low penetration,image back,alarm function,image preservation,image retrieval |
Gray-scale image: | 4096 |
Image resolution: | 1024×768 |
Image Proccessing: | 24 bit real time |
Operating Temp /Humidity: | 0℃-45℃ / 20%-95% |
Storage Temp /Humidity: | -20℃-60℃ / 20%-95% |
Operating Voltage: | 220V AC(±10%),50Hz±3Hz |
Power Loss: | 0.5KVA |
Description:
Single inspection dosage < 1.5µgy
Wire resolution: 0.1mm metal line
Film safety: for ISO 1600
Maximum leakage radiation <0.3µgy/h X-ray sensor:l type photo-diode array detector, 12bit
Monitor: high resolution 17inch color lcd display
Color quality:24 bit real colors
Edge enhancement:object contour edge is more distinct
Super image enhancement:image detail is more distinct
Image recurrence:display previous twenty images and process any one of them
Image restoration:restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Applications:
Hotel, railway/bus/subway station, stadium, exhibition hall, etc
Certifications:
Related products:
FAQ:
FAQ
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Shenzhen,China.we have independent department for purchasing, producing, testing, packing, storing .
2.What is the minimum MOQ?
1PCS
3.When is the time of shipping?
Shipped 3 days after payment
5.What is the payment term ?
By T/T,L/C
4.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
