Product Details:
Payment & Shipping Terms:
|
| Model: | XLD-5030C | Warranty: | 1 Year |
|---|---|---|---|
| Max Load: | 200KG | Penetration: | 43 Mm Steel Plate |
| Image Storage: | 10000 Pieces | Image Imagnification: | 1~64 Times |
| Coveryor Speed: | 0.22 M/s | Tube Voltage: | 80~160 Kv(adjustable) |
| Application: | Security Safety Checking | Port: | SHENZHEN |

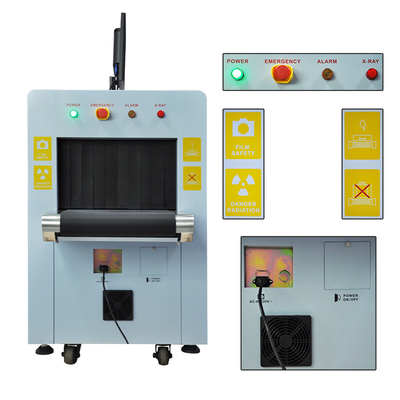

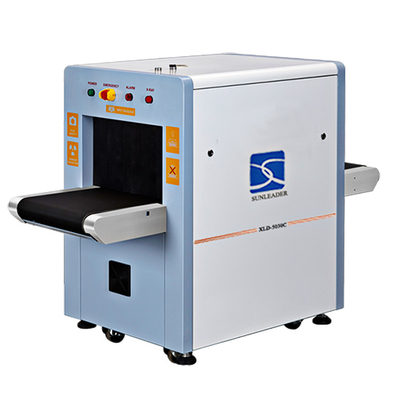

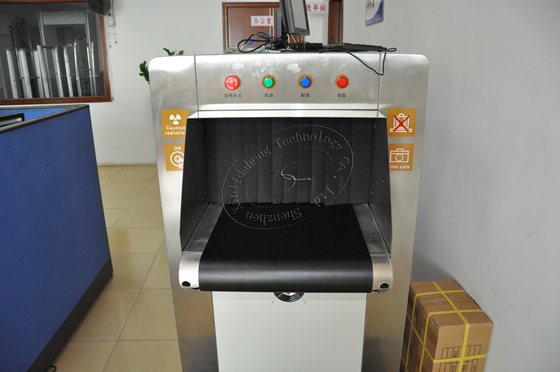

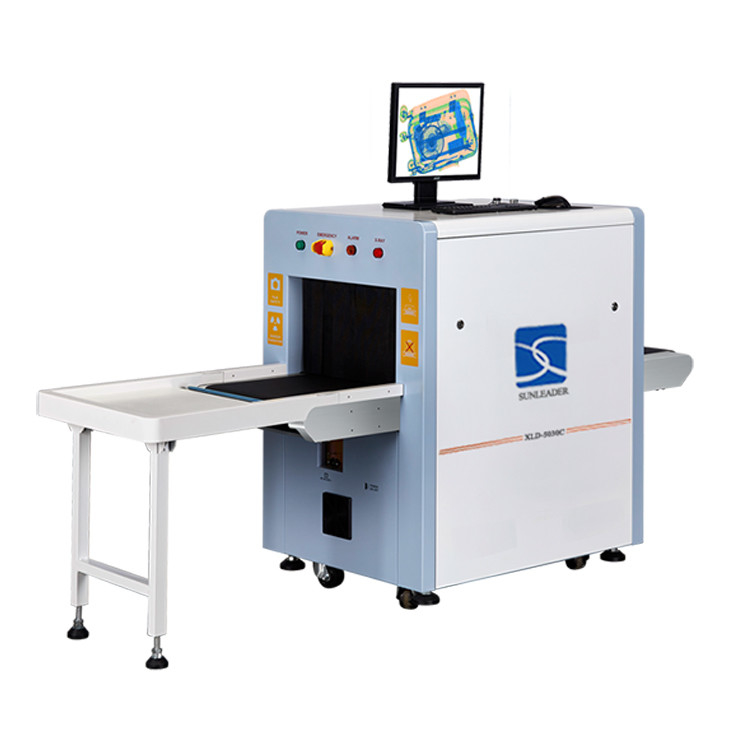

Super airport x-ray security scanner for checking baggage/parcel
1. Channel size: 500(width) x 300(height)mm
2. Conveyor speed: 0.22m/s
3. Conveyor max load: 150kg
4. Single inspection dosage: <0.1mR
5. Wire resolution: diameter 0.1mm(metal line)
6. Steel penetration: 43mm steel board.
7. Film safety: for ISO1600.
8. Leak dosage: <0.1mR/h (distance: 5cm away from the shell), accords with healthy security regulate and all issued international standards requested for radiation equipment.
9. Tube voltage: 80~160kv
10. Cooling / working cycle: sealed oil cooling /100%

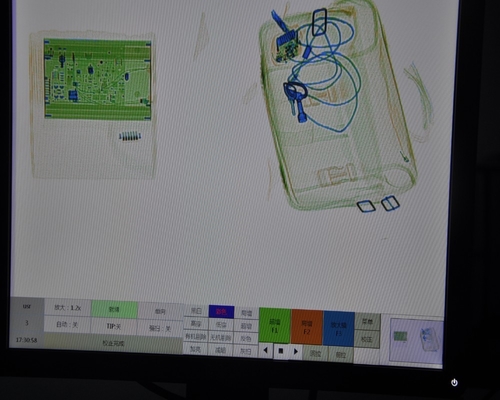

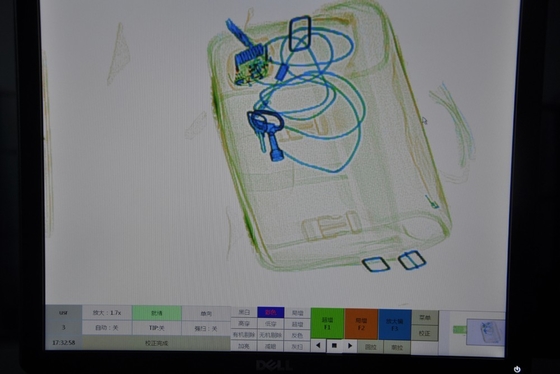

11. Date and time display, working status, image micro-shrink display.Operator identify code.
12. Baggage counter, urgently stop and power-on self-diagnose function.
13. Network interface: system operation and X-ray emission timing.
Item | Professional Edition: 5030C | |
Basic parameter | Conveyor load | 150KG |
| Conveyor speed | 0.22m/s |
| Penetration | 43mm steel board |
X-ray source | Tube voltage | 80~160KV |
| Beam direction | Bottom-up |
Image system | X-ray sensor | Multi-energy |
| Display | 19-inch LCD (touch screen is optional). |
| Real-time image storage | >100000PCS |
rated power | 1.0KVA | |
Product structure | integrated | |
Other configuration | Operation desk | optional |
| Non-power baggage rack | YES |
After service / free quality security | 12 months | |
Working temperature / humidity: 0℃~45℃/20%~95% (No condensation)
Storage temperature / humidity: -20℃~60℃/20%~95% (No condensation)
Working voltage: 220VAC (±10%) 50±3Hz
Power consumption: 1.0KVA (maximum)
