Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500(w)* 300(h)mm | Conveyor Speed: | 0.22 M/s |
|---|---|---|---|
| Type: | Outdoor | Application: | Airport |
| Product Name: | X-ray Baggage Scanner | Certificate: | RoHS |
| Weight: | 500kgs | Feature: | Security Check |
| Brand Name: | Sunleader | Material: | Metal |
| Port: | Shenzhen |

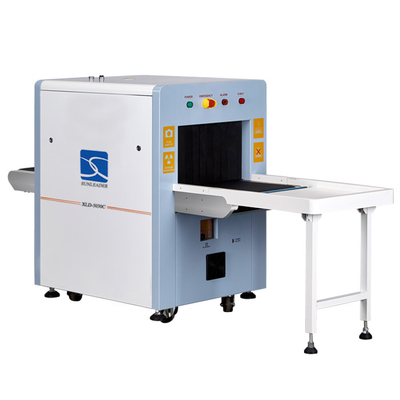

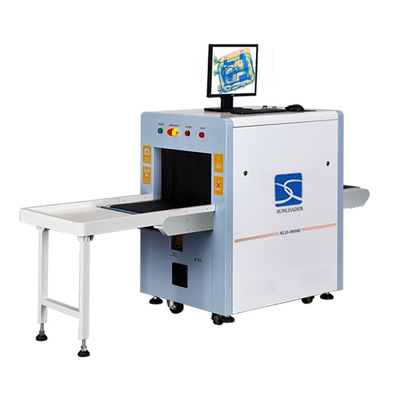

XLD - 5030C X-ray machine
Basic parameters:
Channel size: 505(width) x 305(height)mm
Conveyor speed: 0.2m/s
Conveyor max load: 150kg
Single inspection dosage: <0.1mR
Wire resolution: diameter 0.1mm(metal line)
Steel penetration: 30mm steel board.
Film safety: for ISO1600.
Leak dosage: <0.1mR/h (distance: 5cm away from the shell), accords with healthy security regulate and all issued international standards requested for radiation equipment.
X-ray generator:
Tube voltage: 140kv
Cooling / working cycle: sealed oil cooling /100%
Image system:
X-ray sensor: L photo-diode array detector
Display: High resolution 19-inch LCD, conforms to MPRII and TC003 standards (touch screen is optional).
Image processing: color / black and white image reverse display, edge boost up. image boost up: high penetration, low penetration, image pullback, alarm function, image saving, image search.
Item | Professional Edition: 5030C | |
Basic parameter | Conveyor load | 150KG |
Conveyor speed | 0.2m/s | |
Penetration | 30mm steel board | |
X-ray source | Tube voltage | 140KV |
Beam direction | Bottom-up | |
Image system | X-ray sensor | multi energy |
Display | 19-inch LCD (touch screen is optional). | |
Real-time image storage | >1000000PCS | |
rated power | 1.0KVA | |
Product structure | integrated | |
Other configuration | Operation desk | optional |
Non-power baggage rack | YES | |
After service / free quality security | 12 months | |
Shenzhen Xinlidahong Technology Co., Ltd is a private-owned high-tech company specialized in detecting. Since its foundation, the company has hold the business philosophy
as root in integrity, seek for excellence; adhere to the principle that take market for guidance, take technology for basis, take quality for fundamentality, take sales for leading; through constant struggle,we have eveloped into one of best suppliers of security and protection products in this trade.
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
