Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500(w)* 300(h)mm | Conveyor Speed: | 0.22 M/s |
|---|---|---|---|
| Type: | Outdoor | Application: | Airport |
| Product Name: | X-ray Baggage Scanner | Certificate: | RoHS |
| Weight: | 500kgs | Feature: | Security Check |
| Brand Name: | Sunleader | Material: | Metal |
| Port: | Shenzhen |

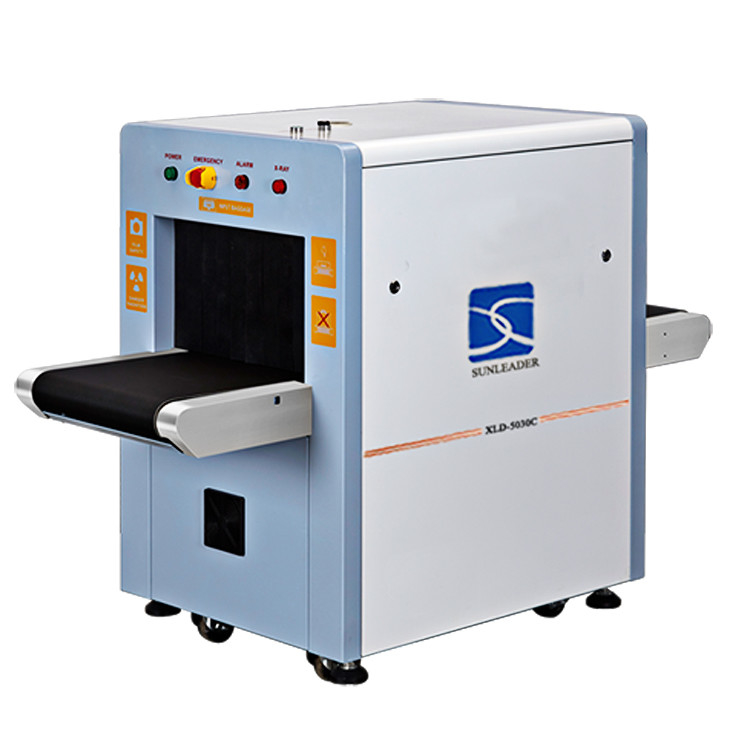

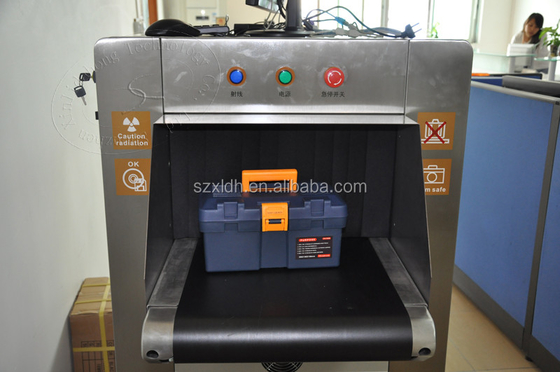

XLD - 5030C X-ray machine
Basic parameters:
Channel size: 505(width) x 305(height)mm
Conveyor speed: 0.2m/s
Conveyor max load: 150kg
Single inspection dosage: <0.1mR
Wire resolution: diameter 0.1mm(metal line)
Steel penetration: 30mm steel board.
Film safety: for ISO1600.
Leak dosage: <0.1mR/h (distance: 5cm away from the shell), accords with healthy security regulate and all issued international standards requested for radiation equipment.
X-ray generator:
Tube voltage: 140kv
Cooling / working cycle: sealed oil cooling /100%
Image system:
X-ray sensor: L photo-diode array detector
Display: High resolution 19-inch LCD, conforms to MPRII and TC003 standards (touch screen is optional).
Image processing: color / black and white image reverse display, edge boost up. image boost up: high penetration, low penetration, image pullback, alarm function, image saving, image search.
| Item | Professional Edition: 5030C | |
| Basic parameter | Conveyor load | 150KG |
| Conveyor speed | 0.2m/s | |
| Penetration | 30mm steel board | |
| X-ray source | Tube voltage | 140KV |
| Beam direction | Bottom-up | |
| Image system | X-ray sensor | multi energy |
| Display | 19-inch LCD (touch screen is optional). | |
| Real-time image storage | >1000000PCS | |
| rated power | 1.0KVA | |
| Product structure | integrated | |
| Other configuration | Operation desk | optional |
| Non-power baggage rack | YES | |
| After service / free quality security | 12 months | |
