New product 10080 X-ray container scanner/Security machine /luggage scanner
1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interfaceCould be connect local area network and support multi-terminal check baggage at same times
3. Safety rayTransmit ray under automatic control, avoids the miss.
4. Turn off by a key controlTurn off the machine only need one steprevolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eyeCould be expediently observing enlargement area.
6. Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.

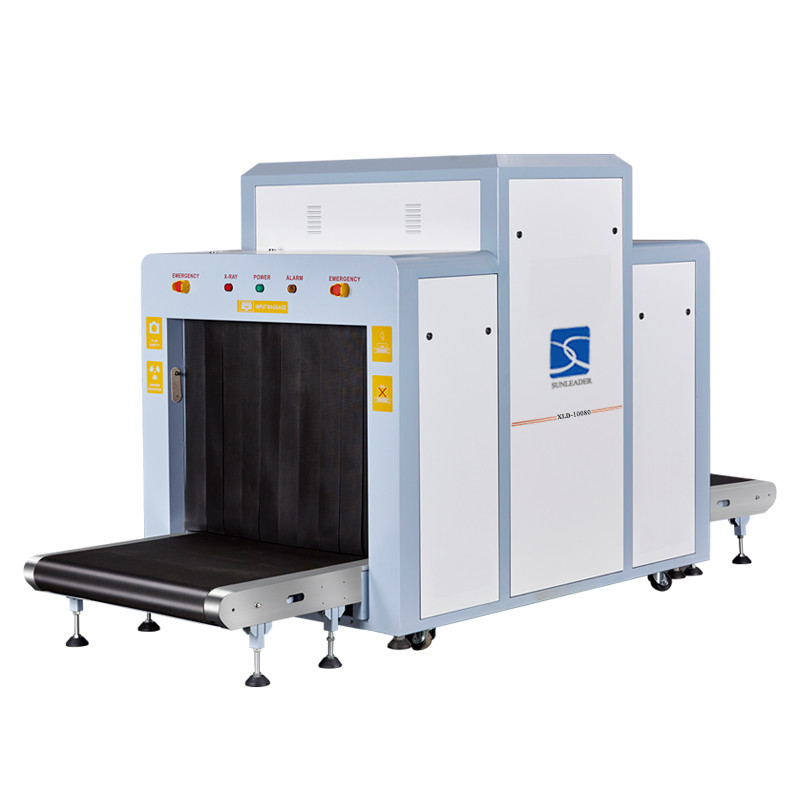

XLD-10080 X-ray machine
Shenzhen Xinlidahong Tech Co., Ltd
sealed oil cooling /100%
Th device provides a good grounding terminal.
20%~95% (no condensation)
30mm steel plate
Æ0.13mm metal wire
<2mSv /h (0.2mR/h) 5cm away from the shell,
typical value <1mSv /h (0.1mR/h)
Standard leak dose
In accordance with GB15208-94 protection standards
color / black, pseudo-color, edge boost up. image boost up: high penetration, image pullback(20pcs), alarm function, organic matter eliminating,inorganic matter eliminating, picture inversion, saturation scanning, image saving, image search, additional image display box
Scanning of images
Scanning brightness of black and white images, color image saturation scanning, image blocking.
1-9 selective zones, amplification of 2,4,8,16 times.
Real-time storing of 10000PCS of images, with image transfer function
Date and time display, operator identification number, device dumber, automatic image inserting, working status, image micro-shrink display, Operator identify code, black and white / color image switching, baggage counting & zero clearing, urgently stop and power-on self-diagnose function. X-ray equipment scroll direction change, network interface: system operation and X-ray emission timing, Automatic maintenance tips.
One 17in(43cm) rectangular plane color display 1280×1024 < 0.28 dot pitch. Field frequency≥75Hz MAX: 100Hz, flicker free, 22 gray-scale, in line with MPRII and TCO95 standards. Automatic protection screen.
No matter how to put the goods, they are all perspective, without blind spots or dead angles.
With lead plate shielding in shell, with lead shielding curtains at inlet and outlet.
X-ray indicator light and emergency stop button at inlet and outlet.
