Product Details:
Payment & Shipping Terms:
|
| Function: | Security Checking | Name: | X Ray Baggage Scanner |
|---|---|---|---|
| Type: | XLD-5030C | Port: | Shenzhen |

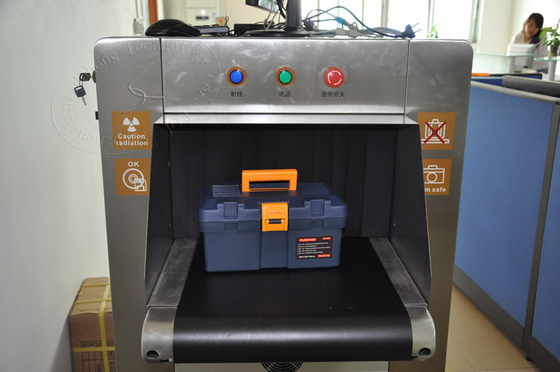

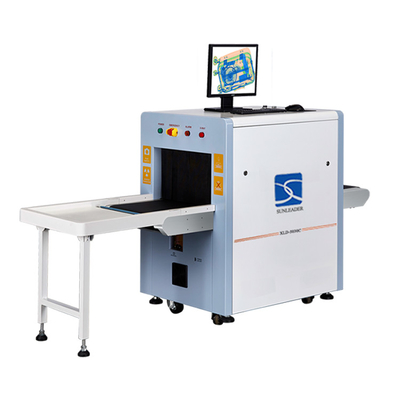

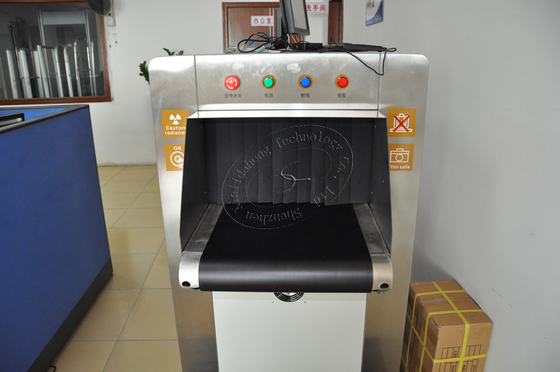

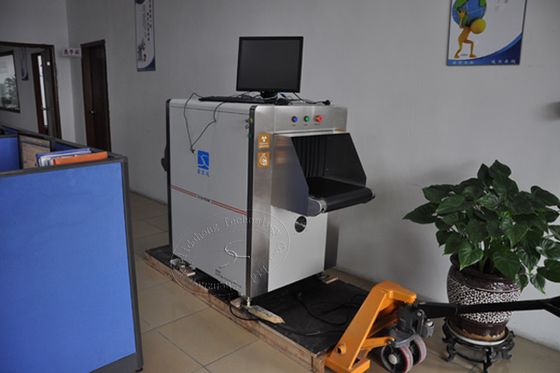

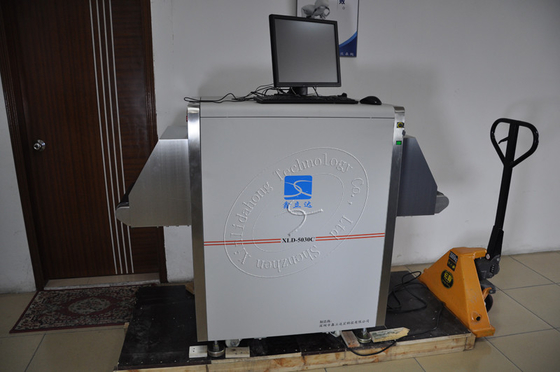

Small size 5030 high penetration Dual energy X ray baggage scanner machine for airport checking
Specifications:
Model | XLD-5030C |
Conveyor speed: | 0.22m/s |
Conveyor max load: | 20kg |
Single inspection dosage: | <1.5µgy |
Wire resolution: | 0.1mm metal line |
Steel penetration: | 32mm armor plate |
Film safety: | For iso 1600 |
Maximum leakage radiation: | <0.3 µgy/h |
X-ray generator: | Orientation vertically upward |
Tube current: | 0.4~1.2ma(adjustable) |
Anode voltage: | 100~160kv(adjustable) |
Angle: | 80° |
Generator cooling/working periods: | Sealed oil bath with forced air/100% |
Description:
1. image performance system
2. x-ray sensor l type photo-diode array detector, 12bit
3. monitor high resolution 17inch color lcd display color quality 24 bit real colors
4. edge enhancement object contour edge is more distinct
5. super image enhancement image detail is more distinct
6. high penetrate strength display increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
7. low penetrate strength display increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly
8. magnifier function of partial enlargement
9. brightening/dimming increase brightness of image/decrease brichtness of image
10. image recurrence display previous twenty images and process any one of them
11. image restoration restore image to initial status at the time of stopping conveyor
12. image storing real time store any image and process it in operation status
13. multi-energy color display organic material for orange, display inorganic material for blue, and display mixture for green
14. high energy/low enercy switch to display two energy type, high energy stands for metal etc., low energe stands for nonmetallic
15. auxiliay function for drugs & explosives help to detect such dangerous material as drugs & explosives etc.
16. audible & visible alarm give sound and visible signal when conforming to condition
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001,CE and RoHS certificate.
