Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 1000w X 800h (mm) | Conveyor Speed: | 0.22 M/s |
|---|---|---|---|
| Conveyor Max Load: | 200 Kg | Warranty: | 18 Months |
| Power: | 1.4KVA | Steel Penetration: | 30mm Armor Plate |
| Certificate: | ISO,CE,RoHs | Working Temperature: | 0℃~40℃ |
| Noise: | 63db | Relative Humidity: | 20%~95% |
| Port: | Shenzhen |

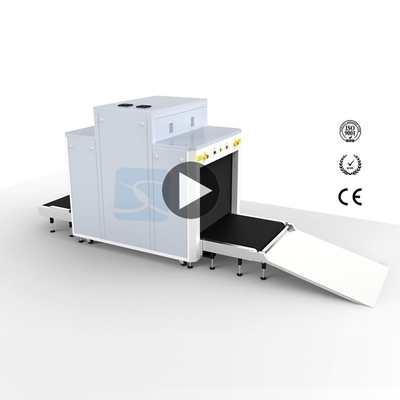

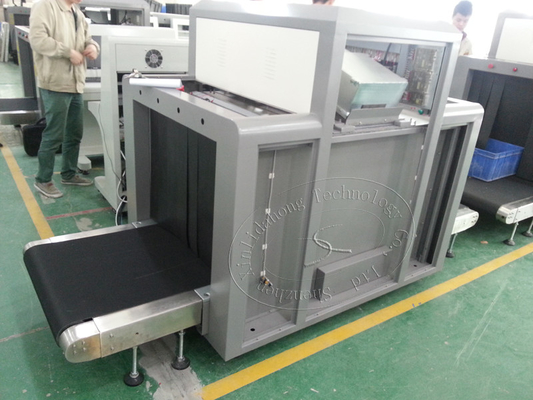

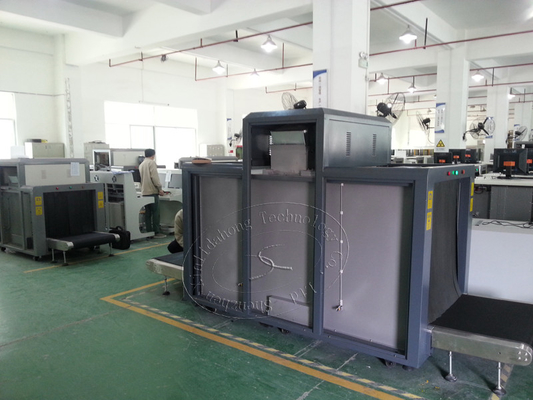

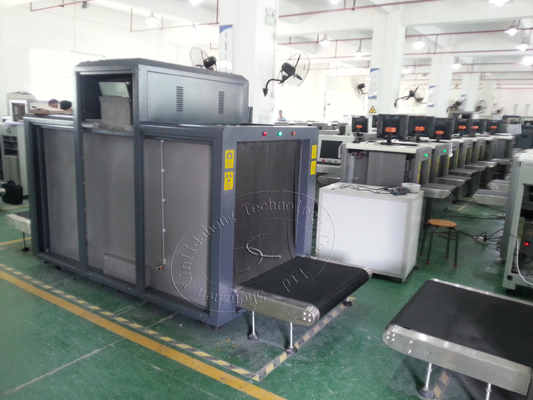

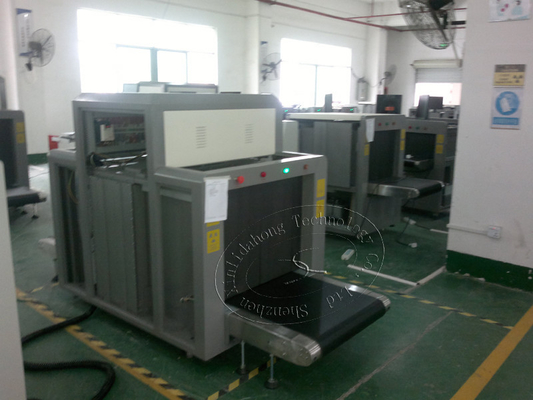

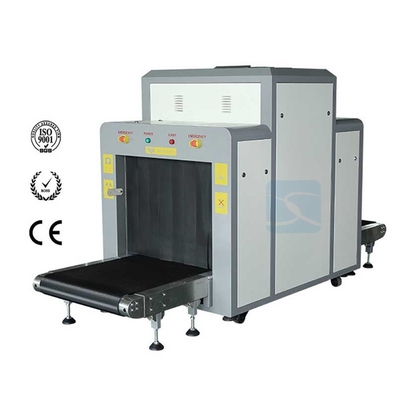

X-ray baggage scanner used x ray equipment in airport/hotel/,jail/court XLD-10080
Product Parameters:
General Specification
Tunnel Size | 1000(W)*800(H)mm |
Conveyor Speed | 0.22m/s |
Conveyor Max Load | 200kg |
Dose per Inspection | <1.7uGy/h |
Resolution | <0.101mmMetal Wire |
Spatial resolution Level | diaφ1.3mm , Vertical:diaφ1.0mm |
Through resolution | φ0.254mm |
Penetration | 30mm Steel |
Film Safety | Guarantee ISO1600 Film |
X-ray Leakage | 0.1 uGy/h (at a distance of 5cmFrom external housing) |
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
More information, pls feel free to contact us.
