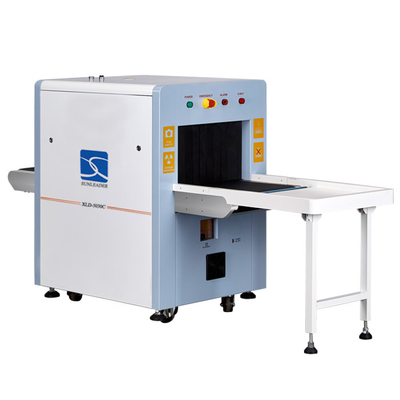

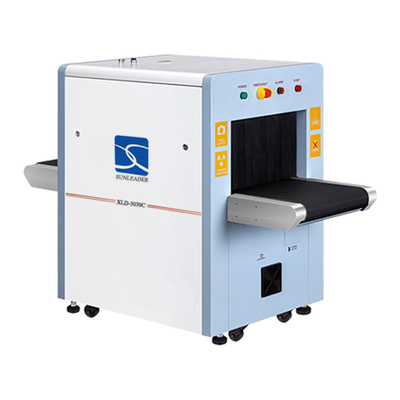

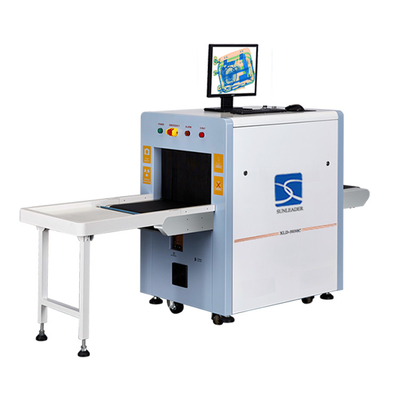

XLD-5030C high resolution 12inch color lcd display X ray luggage scanner

XLD-5030C high resolution 12inch color lcd display X ray luggage scanner
XLD-5030C high resolution 12inch color lcd display X ray luggage scanner XLD-5030C high resolution 12inch color lcd display X ray luggage scanner XLD-5030C high resolution 12inch color lcd display X ray luggage scanner

Large Image :  XLD-5030C high resolution 12inch color lcd display X ray luggage scanner

Product Details:
Place of Origin: Guangdong, China
Brand Name: Sunleader
Model Number: XLD-5030C
Payment & Shipping Terms:
Price: $8,000.00 - $9,000.00/sets
Packaging Details: standard export packing boxes
Supply Ability: 1000 Roll/Rolls per Month
Detailed Product Description
Tunnel Size: 500w X 300h (mm) Conveyor Speed: 0.22m/s
Conveyor Max Load: 20 Kg Wire Resolution: 0.1mm Metal Line
Steel Penetration: 32mm Armor Plate Anode Voltage: 100~160 Kv(adjustable)
Port: SZ

XLD-5030C high resolution 12inch color lcd display X ray luggage scanner



 tunnel size: 500(w)×300(h)mm

  1. alarm by sounds & light
  2. network interface could be connect local area network and support multi-terminal check baggage at same times
  3. safety ray transmit ray under automatic control, avoids the miss
  4. image monitoring for user-friendly the monitor use  fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
  5. simple operation by mouse without keyboard and work table, control by mouse, save space.
  6. turn off by a key control turn off the machine only need one step revolves the key. the equipment automatic security close-down, does not need complex many steps, is simpler.
  7. eagle-eye could be expediently observing enlargement area.
  8. estimate malfunction by self automatic estimate malfunction and prompt message, helpful for the maintenance.

technical data

conveyor speed 0.22m/s

conveyor max load 20 kg

single inspection dosage < 1.5µgy

wire resolution 0.1mm metal line

steel penetration 32mm armor plate

film safety for iso 1600

maximum leakage radiation <0.3µgy/h

x-ray generator

orientation vertically upward

tube current 0.4~1.2ma(adjustable)

anode voltage 100~160 kv(adjustable)

angle 80°

generator cooling/working periods sealed oil bath with forced air/100%

image performance system

x-ray sensor l type photo-diode array detector, 12bit

monitor high resolution 17inch color lcd display

color quality 24 bit real colors

edge enhancement object contour edge is more distinct

super image enhancement image detail is more distinct

high penetrate strength display increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

low penetrate strength display increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly

magnifier function of partial enlargement

brightening/dimming increase brightness of image/decrease brichtness of image

image recurrence display previous twenty images and process any one of them

image restoration restore image to initial status at the time of stopping conveyor

image storing real time store any image and process it in operation status

multi-energy function

multi-energy color display organic material for orange, display inorganic material for blue, and display mixture for green

high energy/low enercy switch to display two energy type, high energy stands for metal etc., low energe stands for nonmetallic

auxiliay function for drugs & explosives help to detect such dangerous material as drugs & explosives etc.

audible & visible alarm  give sound and visible signal when conforming to condition

operating environment

storage temperature -20ºc to 60ºc

operating temperature 0ºc to 45ºc

relative humidity 20 to 95% non-condensing

system power 220 vac (±10%) 50±3hz

power wastage 1.0 kw (max)

noise <65db.
