Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Years | Customized Support: | OEM |
|---|---|---|---|
| Power Supply: | AC 220V | Workplace Environment: | -20~45degree |
| Consumption Power: | <30va | Weight: | 60kg |
| Detect Zone: | 18 Zones | Sensitivity: | 0-99 |
| Port: | Shenzhen |

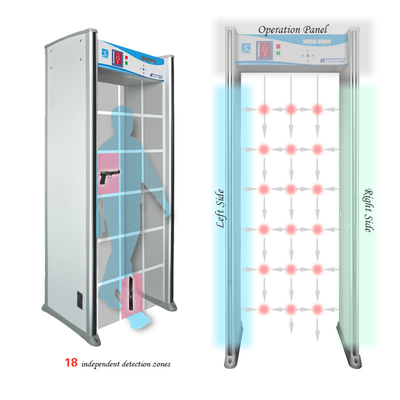

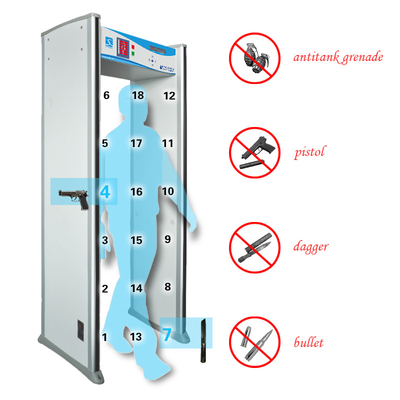

18 zones sensitivity arched walk through metal detector gate XLD-E1
MAIN FUNCTIONS
Detecting Mode Electric wave induction
Sensitivity 6 individual zones, each 0-99 adjustable
Alarm Mode Sound & light (control panel)
Statistics System Intelligently automatic recording of alarming Times and number of people passed.
Protection Grade IP20(EN60529)
Anti-interfering Capacity(5-10grade) 8grade
Criteria EN60950(Electric safety test) EN50087-1(radiation)
EN50082-1(anti-jamming)
SPECIFICATIONS
1 Power Supply/Frequency: AC100-240V/50-60Hz
2 Color: deep grey
3 Net Weight: 59Kg
4 Dimension(length x width x height)mm: 2235mm x 835mm x 580mm
PACKAGE
1 Package Weight:Paper carton 66Kg
2 Control Panel Package Dimension: 760mmx440mmx260mm
3 Board Package Dimension: 2290mmx640mmx200mm
4 Guarantee:12 months
APPLICATIONS
Widely used in airport,jail,court,factory,hospital,power plant,gymnasium,
Amusement building,financial institution,schools,etc.
