Product Details:
Payment & Shipping Terms:
|
| Sensitivity: | 0~255 | Zone: | 5 |
|---|---|---|---|
| Weight: | 35kg | Detection Distance: | 2000mm(h)*8000mm(w)*400mm(d) |
| Material: | -20℃~+45℃ | Power: | 20w |
| Brand: | SUNLEADER | Warranty: | 1 Year |
| People Counting: | Yes | ISO,CE,ROHS: | Yes |
| Port: | SHENZHEN |

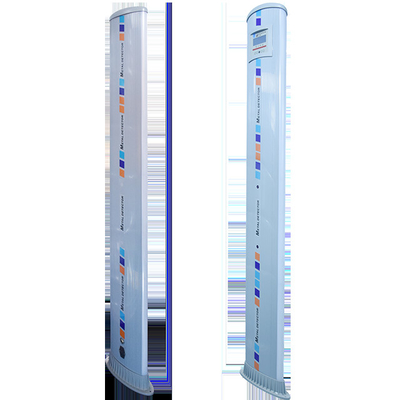

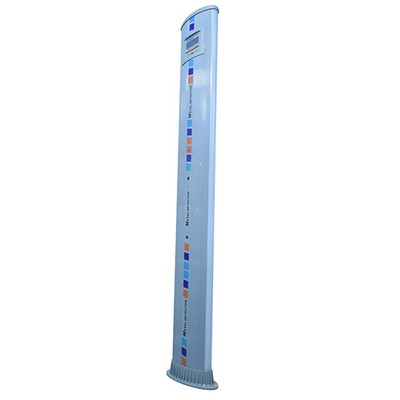

XLD-H SINGLE PANEL WALK THROUGH METAL DETECTOR
1. 5 detecting zones.
2. Light weight.
3. IP55 protection standard.
4. Both sides detection.
5. Dry contact.
| Dimension | 2020mm(H)X39mm(W)X160mm(D) |
| Gross Weight : | About 24kg |
| Work environment : | -20- +45℃ |
| Complied standards | GB15210-94 |
| Power supply: | 100-220V,AC |
| Power: | <30W |
| Material of panel: | Water-proof ABS |
| Count detecting | Infrared sensor, mechanical anti-interference |
| Sensitivity: | Adjustable from 0 to 255 |
| Alarm time: | 1-25s |
| Alarm tone: | 10 |
| Alarm volume | 0-255 |
| Frequency: | 4-8K |
Description:
Product Process: Using strong ABS material, waterproof and light weight.
Infrared technology: through an infrared sensor, mechanical interference ability.
Adjustable area sensibility: Between the self-regulation can be 0-255 sensitivity, according to the user’s demands the removal of the actual sensitivity and carried by the body jewelry, belt buckle, metal zipper and so on.

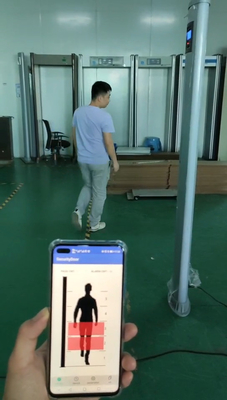

Statistical functions: Intelligent and Statistics by the number of personnel and alarm times.

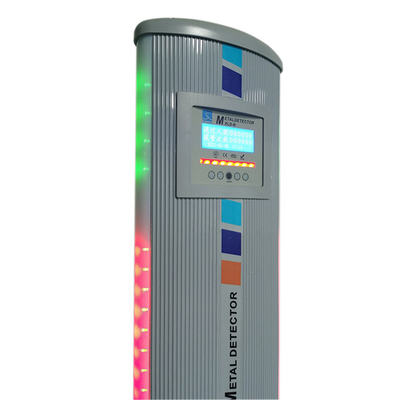

Easy to operate: Operation panel for the thin-film panel, high-brightness display panel can directly display alarm area, precise location of the instructions have been exploratory items, and have sound and light alarm simultaneously.
Password protection: Set authorization, password manager, allowing only authorized personnel to operate, which can effectively prevent others to modify the parameters.
Harmless to human body: On the human body, the heart pacemakers, pregnant women, magnetic floppy disks, tapes, video tapes and other sound.
Plug & Play: There is no need to assemble the units. Open the package and set it up, it will work.
Hotel, railway/bus/subway station, stadium, exhibition hall, etc
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
