|Detector Zones:||18 Zones||Alarm Time:||1 To 25 Seconds|

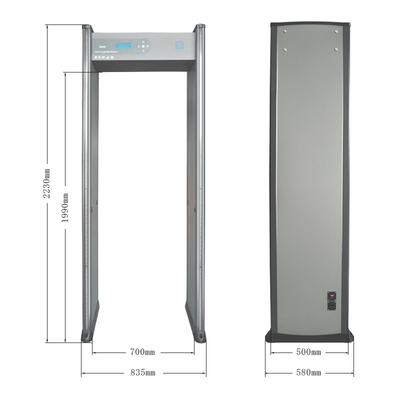

|Display:||LCD Display||Overall Dimension:||2230mm(height)X830mm(width)X580mm(depth)|
|Speed:||100persons Per Minute||Warranty:||2 Years|
18 zones security check gate, walk through metal detector XLD-E
LCD Display . (walkthrough metal detector )
.Upon starting up ,the system will automatically diagnose whether the operation is ok or not
.Automatically display the content of system malfunction
1)Chinese/English menu function for choice
2) Computer remote networking.
The fastest speed: 100 people per minute .Detection speed of user-defined adjustment.
Adjustable continual display time: 0 to 99 Seconds
Minute , Hour , Day Month and year .

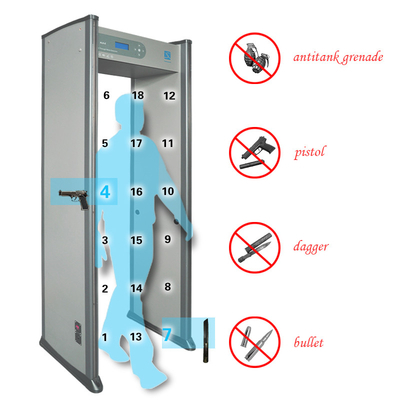

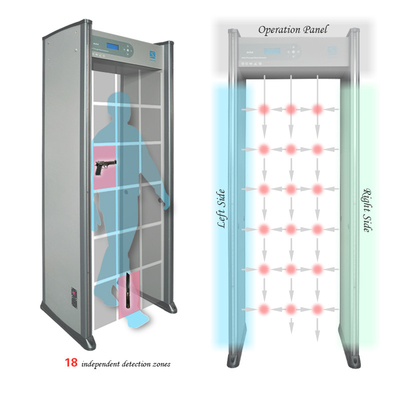

Multi-zone and signal zone for your option according to requirements(default value: 6 zones ) (MAX 18 ZONES)
1) Partition zone of Digital metal detector according to the body structure
2) Networking with overlapping detection methods ,eliminating the detection region of “weak zones” and “shadow area”
3) Adopting the single frequency formed very uniform magnetic area density in the excitation technique detecting zones
4) Strong penetration, high sensitivity and stable performance.
1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree.
2)Around the goal post ,can be directly show inspection zones through the LED alarm light ,and accurately show the corresponding height of the body hidden prohibited items.
1).Can evenly adjust 255 degree sensitivity of every zone
2).Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on
Strong anti-jamming capability
1)Adopting the advanced interactive receiving and transmitting
2) Automatically detecting and tracking by temperature and humidity and compensation technique to be available to different environment and climate, significantly increased anti-jamming capability.
.Using RJ-45 network interface, which has no limit in distance ,and improved the defects of the short distance of RS232 network.
Configure of dedicated PC software to support remote parameter setting / inquiry function so that we fully know work safety of metal detector gate.
Intelligent recording number of people and alarm counting that can automatically record the number of people and times of alarm.
Times of alarm. Anytime can be check.
use of imported waterproof synthetic material produced by precise technology synthesis
can be set using the occasion required random mode (such as airports, entertainment venues, the Court)
Help system placed inside. More easy and intuitive to operate .
20w. Low power consumption and; Low radiation
Weight of the whole machine
Inspection reports of the Public Security Department
.The relevant trademark
.Products have related the appearance of patent and utility model patents, so intellectual property disputes will not involve.
.It is harmless on people who have cardiac pacemaker , pregnant women as well as to magnetic floppy disc , magnetic tape and videotape.
1. Electronic detection inspection at airports, railway stations and wharfs.
2.Security inspection of customs, public securities.
3.Quality inspection of medicine and food commercial systems.
4.Security inspection of important sites and playgrounds.
5.Noble metal detection, such as gold or silver jewelry manufacturing plants.
