Payment & Shipping Terms:
|Name:||Walk Through Metal Detector||Tunnel Size:||200cm*70cm*50cm|
|Detection Zones:||18 Zones||Usage:||Detect Metal|
|Certificate:||ISO, CE, ROHS||Warranty:||2 Years|
|Payment:||T/T, Western Union||Delivery Time:||Within 5 Working Days|

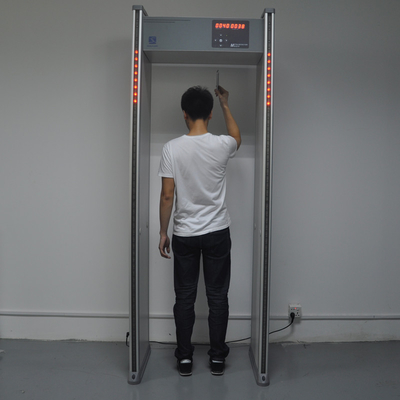

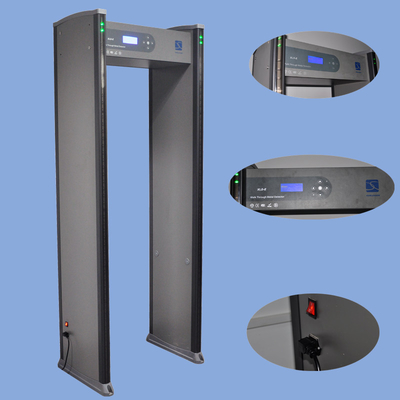

18 zones high sensitive archway walk through metal detector body scanner for airport security
1. Detecting Mode Electric wave induction
2. Sensitivity 18 individual zone, each 0-99% adjustable
3. Alarm Mode Sound & light (control panel)

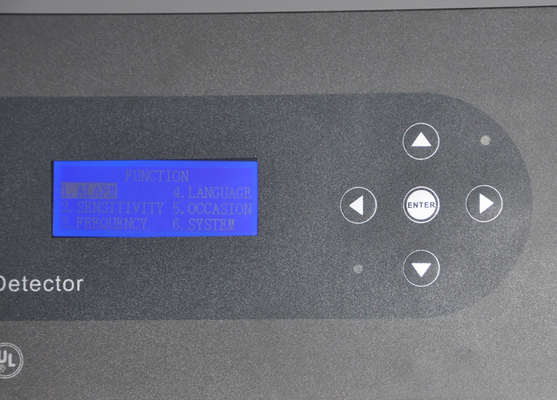

4. Operating Mode Keyboard
5. Statistics System Intelligently automatic recording of alarming Times and number of people passed.
6. Protection GradeIP20(EN60529)
7. Anti-interfering Capacity(5-10grade): 8grade
8. Criteria EN60950(Electric safety test)
Power self-checking Function
*Upon starting up ,the system will automatically diagnose whether the operation is ok or not
*Automatically display the content of system malfunction
*Chinese/English menu function for choice
*Computer remote networking.
Multi-zone and signal zone for your option according to requirements(default value: 1 zones )

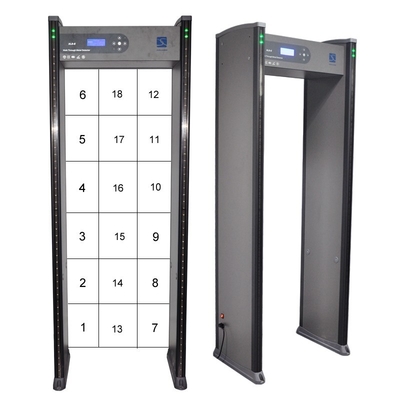

1) Partition zone of Digital metal detector according to the body structure
2) Networking with overlapping detection methods ,eliminating the detection region of “weak zones” and “shadow area”
3) Adopting the single frequency formed very uniform magnetic area density in the excitation technique detecting zones
4) Strong penetration, high sensitivity and stable performance.
1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree.
2)Around the goal post ,can be directly show inspection zones through the LED alarm light ,and accurately show the corresponding height of the body hidden prohibited items.
1)Can evenly adjust 255 degree sensitivity of every zone
2)Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on
Strong anti-jamming capability
1)Adopting the advanced interactive receiving and transmitting
2) Automatically detecting and tracking by temperature and humidity and compensation technique to be available to different environment and climate, significantly increased anti-jamming capability.
1) Double password protection, only allowing authorized user to operate. High safety.
2) Restoring the default value when system error because of improper operation.
3).Uninterruptible power protection system using the battery working 2 to 8 hours , power failure protection system has a parameter (optional)
4) Placed in the top of the host machine power supply can operate by remote control or power control panel working on the machine. Waterproof, moistureproof and better heat dissipation.
5).Has no harm on those who have human cardiac pacemakers and pregnant women, as well as magnetic floppy disk, tape, etc.
*Using RJ45 network interface, which has no limit in distance ,and improved the defects of the short distance of RS232 network.
*Configure of dedicated PC software to reach remote parameter setting / inquiry function so t hat we know work safety of metal detector gate.
Intelligent recording people number and alarm counting function that can automatically record the number of people and times of alarm.
Times of alarm. Anytime can be check.
Use of imported waterproof synthetic material produced by precise technology synthesis
Help system placed inside. More easy and intuitive to operate .
*Inspection reports of the Public Security Department
*The relevant trademark
*Products have related the appearance of patent and utility model patents, so intellectual property dispute s will not involve.
*It is harmless on people who have cardiac pacemaker and pregnant women as well as to magnetic floppy disc , magnetic tape and videotape.
1. Electronic detection inspection at airports, railway stations and wharfs.
2.Security inspection of customs, public securities.
3.Quality inspection of medicine and food commercial systems.
4.Security inspection of important sites and playgrounds.
5.Noble metal detection, such as gold or silver jewelry manufacturing plants.
Contact Person: Mr. zhou
