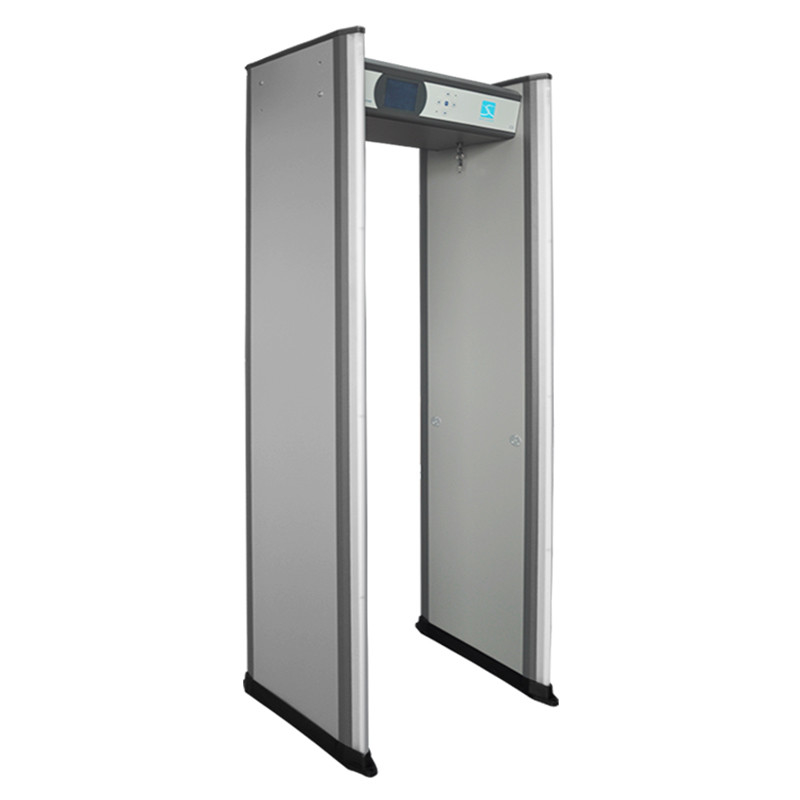

airport security body scanner metal detector gate

XLD-B (LED) anti-terrorist detector

Function features:
*Its exterior is made of high strength synthetic materials.

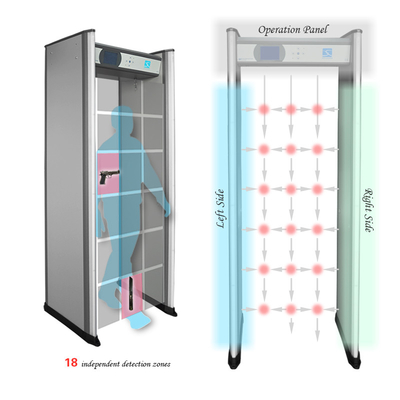

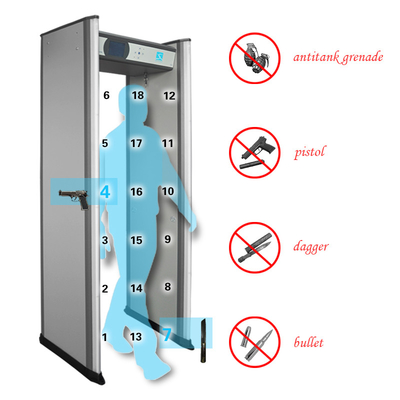

*It consists of 6 display areas with single or multiple areas showing the metal position.
*The built-in high brightness diode indicator light can accurately indicate the alarm area.
*The sensitivity of each area can be adjusted alone. The adjustable sensitivity range is 0-99.
*The automatically winded "emitting-receiving" loop features accurate and firm design. Superior detecting capacity.
*Automatic recording of alarming times and number of people passed.
*8 doors can be put side by side at intervals of only 35 mm without mutual interference.
*It has adopted advanced digital self-balancing technology to overcome omission and misinformation.
*The separated power design can ensure normal operation under extremely unstable voltage conditions.
*With fixer equipped at its bottom, it is water and damp proof.
*It is harmless to pacemaker in human body, pregnant woman or software products.
*At present, the equipment has become a model of choice in courts,
*procuratorates, etc of China for their security inspection.

Technical parameters:

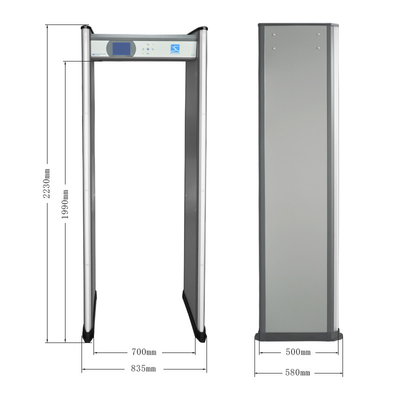

Product external dimensions: 2200 mm*800 mm*500 mm
Product passage dimensions: 2050 mm*700 mm*500 mm
Packaging dimensions consist two parts:
Detecting board 2290 mm*570 mm*200 mm (80 Kg)
Host machine 770 mm*490 mm*290 mm (18 Kg)
Working power: 30 W
Working power: (100 v-240 v)+-10%
