Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Type: | High Sensitivity |
|---|---|---|---|
| Customized Support: | OEM, ODM | Power Supply: | AC 220V |
| Power: | <30w | Port: | Shenzhen |
Metal Detector Door 6 zone

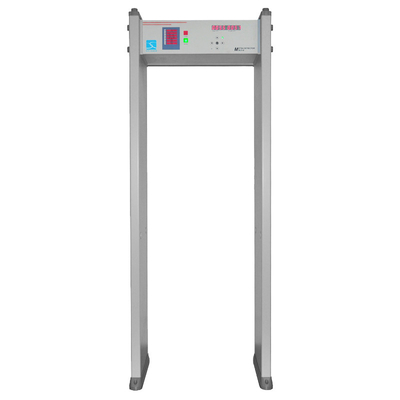

Door frame metal detector Model XLD-II
Detail
| Technical specifications: | |||
| Electric current | 220V | Power | <30w |

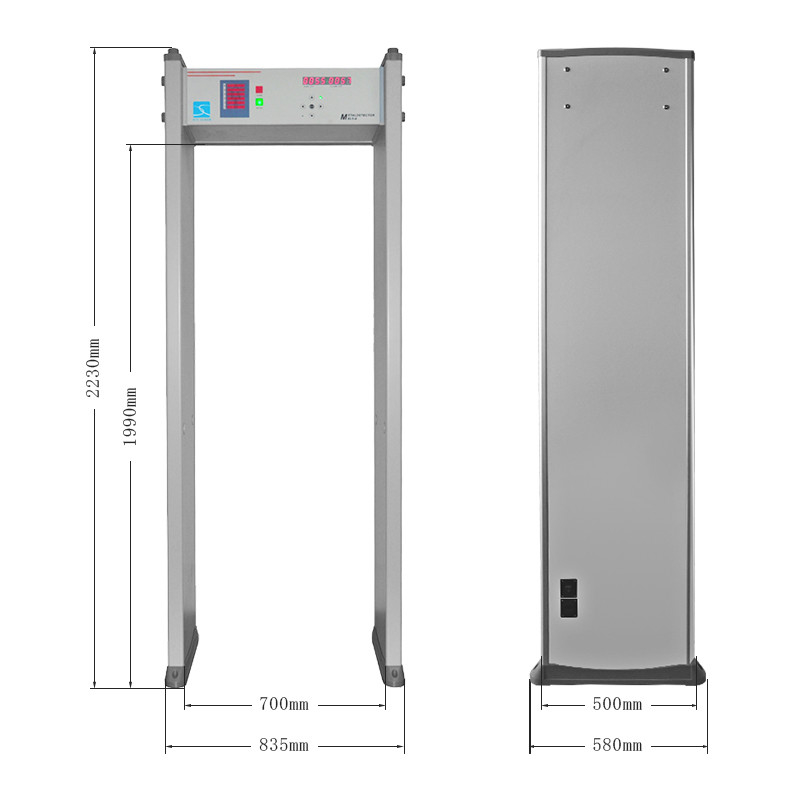

| Outer frame | 2200mm(h)X800mm(w)X500mm(d) | Inner frame | 2010mm(h)X700mm(w)X500mm(d) |
| Weight | about 80kg | work envionment | -20°C- +45°C |
| Complied standards: | GB15210-94 |
|
|
| Function and characteristics | |

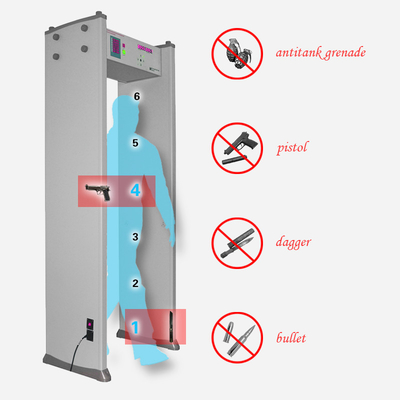

| Six detecting area | Allocation of six mutual over-lapping detecting areas, accurately ascertain the location of the metal articles . |
| Easy and to operate | Convenient operation: operation panel is made of film .This high light panel can show the alarm area directly, display the metal articles direction,size accurately,and have sound & light alarm simutateously.This clear function improves work efficiency greatly.We are able to add controller equipment according to the customer’s request. |
| Adjustable area sensitive | The maximum sensitivity can detect such metal as small as a clip .Each detecting area has 100 sensitive gears ,and can adjust sensitivity automatically, Predetermine the weight ,volume ,size and location of the metal article , Eliminate the false alarm caused by |
| Digital circuit | design prevents from missing alarm , and have strong anti-interferendce to outer surroundings ,the rate of the false alarm is controlled within 1% |
| Statistic function | Intellectual rate of flow of passer and alarm counter can calculate the number Of passer and alarm times |
| Harmless to human body | Using sensitive metal detecting technology is harmless to heartbeat implement in human body , pregnant women ,magnetic softwares , tapes and video recording tapes. |
| Convenience in Installation | Guard Spirit series are systematic designs , need only 20 minutes to install or dismantle , and equip VCD training disk and operation instruction with the machine . |
| Application scope | It can be used in the factory, prison, court, exhibition hall, stadium, entertainment lieu, etc., where the prohibited articles need to be checked for safety. |
Shenzhen Xinlidahong Technology Co., Ltd is a private-owned high-tech company specialized in detecting. Since its foundation, the company has hold the business philosophy
as root in integrity, seek for excellence; adhere to the principle that take market for guidance, take technology for basis, take quality for fundamentality, take sales for leading; through constant struggle,we have eveloped into one of best suppliers of security and protection products in this trade.
1. Electronic detection inspection at airports, railway stations and wharfs.
2.Security inspection of customs, public securities.
3.Quality inspection of medicine and food commercial systems.
4.Security inspection of important sites and playgrounds.
5.Noble metal detection, such as gold or silver jewelry manufacturing plants.
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
