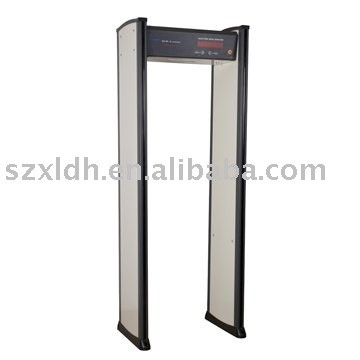

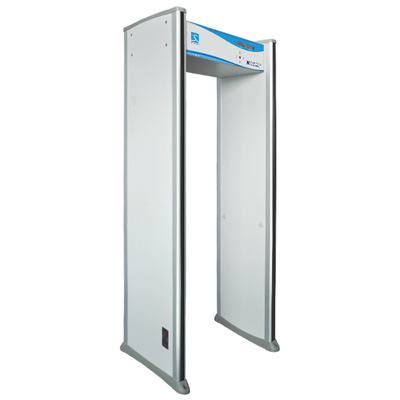

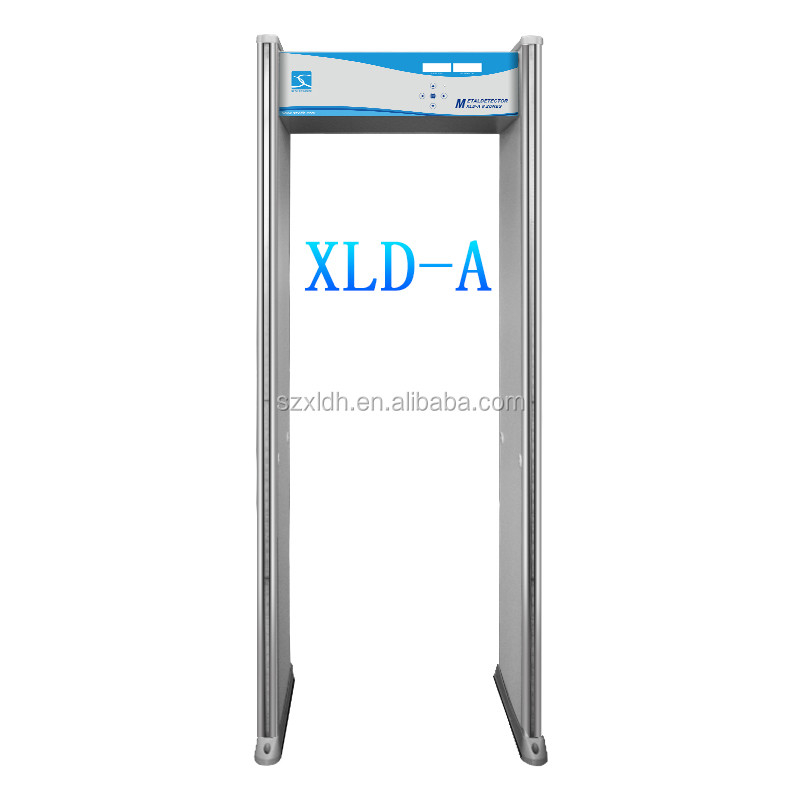

XLD-A walk through Metal Detector Door

I'm Online Chat Now

XLD-A walk through Metal Detector Door

XLD-A walk through Metal Detector Door
XLD-A walk through Metal Detector Door XLD-A walk through Metal Detector Door XLD-A walk through Metal Detector Door XLD-A walk through Metal Detector Door XLD-A walk through Metal Detector Door XLD-A walk through Metal Detector Door

Large Image :  XLD-A walk through Metal Detector Door

Product Details:
Place of Origin: Guangdong, China
Brand Name: Sun Leader
Model Number: XLD-A
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: $750.00 - $950.00/sets
Packaging Details: standard export packing 2 ctns/set
Supply Ability: 1000 Set/Sets per Month
Detailed Product Description
Detect Range: 6zones Consumption Power: Less Than 30w

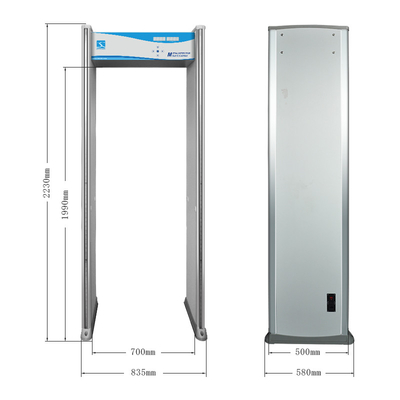

Tunnel Size: 2050*700*500mm Overall Dimensions: 2200*800*500mm
Weight: 78kg Available Place: Factory,airport,prison
Port: Shenzhen

Applying most advanced digital detecting technology in the world, XINLIDAHONG metal detecting gate is for the detection of metal and alloy articles concealed in human body. It is highly safe, widely applicable and highly sensitive with a wide detecting range and a good anti-interference capability. It can work intellectually around the clock and give alarm both in sound and light simultaneously. The quality, effect and specifications are up-to-date in the world.The sensitivity of XINLIDAHONG digital metal detecting gate is adjustable. In the highest volume, articles as small as a paper clip can be detected and located. The user can configure the gate according to the size and weight of the article for detection to exclude err alarm for coins, keys, jewelries, belt buckles etc. It is applicable in the places such as factories, mines, banks, luxuries houses etc., where expensive metal articles may get lost easily; and places such as airport, customhouse, jails, exhibition halls, where dangerous metal articles are prohibited.

Technical specifications
Electric current:
Outer frame:
Outer frame :
Weight :
about 80kg
work envionment :
-20¡æ- +45¡æ
Complied standards:
Function and characteristics:

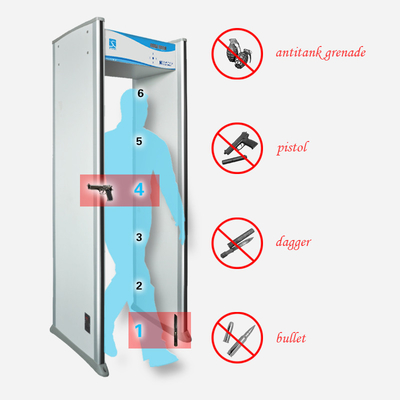

Six detecting area:
Allocation of six mutual over-lapping detecting areas, accurately ascertain the location of the metal articles

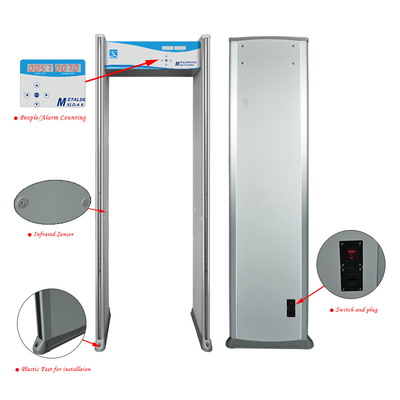

Alarm area indication:
There is an instruction light in alarm area which equals to the height of a person on the right side of the gate,and equipped sound , it is so clear at first sight that rapidly promote work efficiency.
Adjustable area sensitive:
The maximum sensitivity can detect such metal as small as a clip .Each detecting area has 100 sensitive gears ,and can adjust sensitivity automatically, Predetermine the weight ,volume ,size and location of the metal article , Eliminate the false alarm caused by
coins ,keys ,jewelleries and leather bell buttons and so on .
Digital circuit:
design prevents from missing alarm , and have strong anti-interferendce to outer surroundings ,the rate of the false alarm is controlled within 1%.
Password protection:
The gate is protected with password , only enpowered person permitted to operate.
Statistic function:
Intellectual rate of flow of passer and alarm counter can calculate the number Of passer and alarm times .
Harmless to human body:
Using sensitive metal detecting technology is harmless to heartbeat implement in human body , pregnant women ,magnetic softwares , tapes and video recording tapes.
Convenience in Installation:
Guard Spirit series are systematic designs , need only 20 minutes to install or dismantle , and equip VCD training disk and operation instruction with the machine .
Application scope:
It can be used in the factory, prison, court, exhibition hall, stadium, entertainment lieu, etc., where the prohibited articles need to be checked for safety.
