Product Details:
Payment & Shipping Terms:
|
Material: | Acrylic | Size: | 1600mm*450mm*25mm |
---|---|---|---|
Port: | Shenzhen |

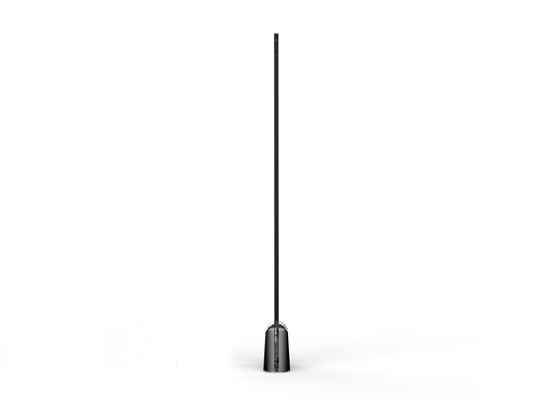

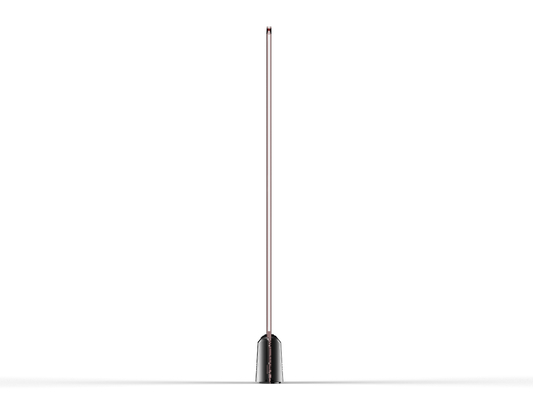

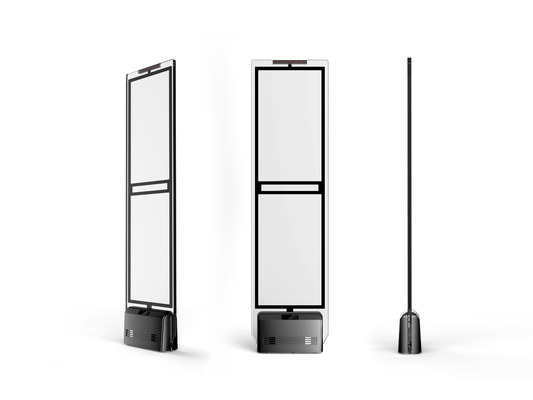

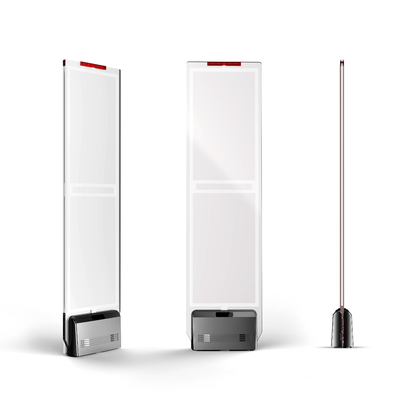

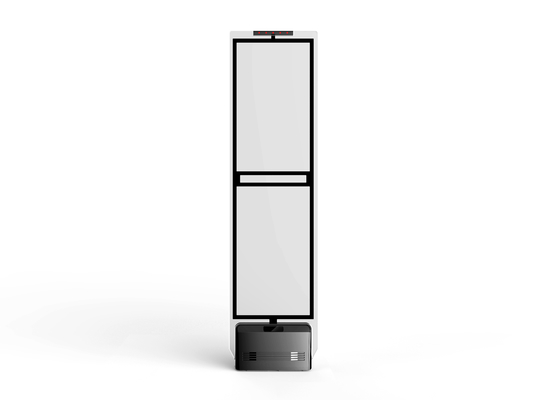

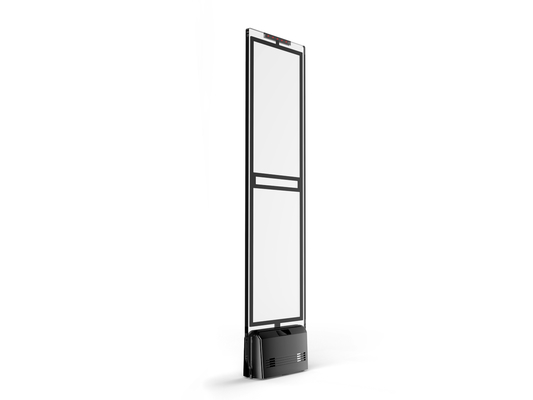

2022new style of acrylic EAS AM antenna XLD-AM04B
EAS AM supermarket security sensor
Quick Detail:
1. With alarm counting function
2. Detecting distance: 1m--1.5m for soft label, hard tag can reach up to 2.8 m (0.3m+0.3m+2.2m)
3. Material: import acrylic
4. Strong anti-jamming
5. DSP Board
6. Frequency: 58KHZ
Specifications:
Product Size | 1600*450*25 mm |
Material | Imported Acrylic |
Frequency | 58KHZ |
Detecting range | 1m--1.5m for soft label, hard tag can reach up to 2.8 m (0.3m+0.3m+2.2m) |
Thickness | 25 mm |
Electronic board | DSP Board |
Detection area | more than 95 percent |
Power | 15 W |
Electrical source | AC(50~60hz)220V~245V |
Installation Type | base type, line slot, embedded tube |
Description:
1. Technical Advantages: Imported Acrylic Material body, elegant appearance, strong aging esistance, durable.
Among the detection antennas of the same kind, it has increased measurement range, strong anti-interference performance, applicable to various shopping places.
2. Automatic signal conditioning: the most advanced automated environmental monitoring program, auto-matching of system parameters, truly free from system adjustment.
3. Manual signal conditioning: capable of configuring the system manually in the complex field environment, strong adaptability.
4. Wireless synchronized signal technology: capable of selecting different synchronization values by adjusting the frequency synthesizer,
the interference on the frequency is staggered, and the channel is more broad.
5. High-precision digital filtering technology: fourth-order digital filter technology.
6. Multi-level filtering processing of signals, effectively improving the range and efficiency of tag detection.
7. Intelligent display technology: Various parameters can be displayed and both LED multifunction process.
8. Man-machine interactive design: Infrared Remote Control, simple operation, convenient and fast.
9. 100MHZ High speed DSP digital signal processing, super data processing performance to ensure system detection sensitivity and stability.
Main Advantages:
1. Most advanced signal processing (DSP) technology;
2. Self-adapting multichannel Frequency Hopping, 95% detection rates;
3. Strong anti-jamming capability;
4. Multiple anti-interference technologies;
5. Very professional and popular in Use in Fashionable Super store and Supermarket.
Application places:
Supermarket, super mall, retail store, shoes store, clothes store, harware store, sports shop, hat shop,
glasses store, jewelry store, pharmacy, cosmetic store, etc.
