Security Systems Portable Explosives & Drugs Detector

Detailed Product Description


Analysis time2S
Preheat time16.5 minutes
Recall factor99%
Working environment: - 10~ 55 ℃, relative humidity 99%
Power: 220v AC 50 to 60 hz / lithium batteries
Power adapter: input 220 v / 50-60 hz AC; output 16v / DC

  • Features
  • Description

EXW SHENZHEN 25500usd/set

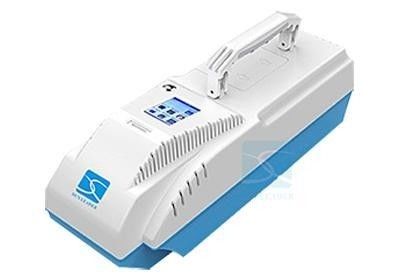

Portable explosives & drugs detector is a new generation portable photoionization detectofor
explosives and drugs, adopting advanced photoionization high resolution ion mobility spectrometry,
free from radioactive source, no radiation hazard to the human body, fast detection speed, high
detection sensitivity, low power consumption, small volume, light weight, easy to carry, easy to
maintain, strong adaptability to use environment and requirement, to accurately detect the black
powder, and all explosives and drugs stipulated by the International Civil Aviation Organization (ICAO) .

Five advantages:
1.Vacuum ultraviolet ionization source without radioactive source, safe and convenient to use,
accurate analysis of the compositions of explosives and drugs.
2.Black powder nanogram level detection performance, to detect dangerous goods, such as fireworks,
civil home-made explosives.
3.Fast test analysis, 2 seconds to get the results.
4.Adopting positive and negative dual modes, it can detect explosives and drugs at the same time.
5.Open database: Sample bank database can upgrade at any time.

Technical indicators:
Adopted echnology: photoelectric high resolution ion migration spectrum
Explosives to be detected: all kinds of military, civil and home-made explosives,such as black powder,
ammonium nitrate(AN), TNT, PETN, RDX, nitroglycerin, Octogen, Tetryl, dinitrotoluene(DNT), C4, Semtex, etc.
Drugs to be detected: cocaine hydrochloride, heroin hydrochloride, tetrahydrocannabinol, methamphetamine(meth),
ketamine hydrochloride(K), morphine hydrochloride. New samples can be added according to needs.
Sample modes: Trace particle adsorption & test paper wiping sampling.
Sensitivity: nanogram level
Alarm ways: audio + display information
Battery parameters: Lithium battery 16.8 V / 13 ah. Continuous power supply is not less than 2 hours.

Areas of application:
(1) safety inspection for airports, railway stations, and other important places;
(2) national security;
(3) public security.
